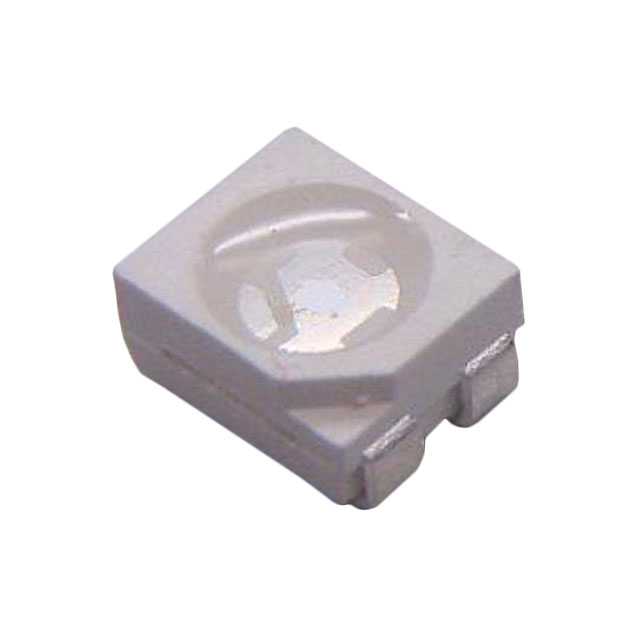

CLM4B-BKW-CUAVA453

Unknown

Cree LED

LED BLUE CLEAR 4PLCC SMD

Search across all available documentation for this part.

Unknown

Cree LED

LED BLUE CLEAR 4PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

SMD LM4-B SERIES LED -BLUE COLOR,FULL RANK,TAPE AND REEL

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Height (Max) [Max] [z]	Supplier Device Package	Lens Size [diameter]	Current - Test	Configuration	Lens Color	Lens Transparency	Wavelength - Dominant [custom]
Cree LED CLM4B-BKC-CTBVA353	Surface Mount	1.3 mm	3.2 mm	4-PLCC	468 nm	3.1 V	Blue	627.5 mcd	2.1 mm	4-PLCC	2.2 mm	30 mA
Cree LED CLM4B-BKW-CUAVA453	Surface Mount			4-PLCC	470 nm	3.6 V	Blue	675 mcd	2.05 mm	4-PLCC		30 mA	Standard	Colorless	Clear
Cree LED CLM4B-AKB-CWAXB263	Surface Mount			4-PLCC	591 nm	2.4 V	Amber	1960 mcd	2.05 mm	4-PLCC		50 mA	Standard	Colorless	Clear
Cree LED CLM4B-RKB-CWBXBAA3	Surface Mount			4-PLCC	624 nm	2.4 V	Red	2100 mcd	2.05 mm	4-PLCC		50 mA	Standard
Cree LED CLM4B-BKB-CUBVA453	Surface Mount			4-PLCC	470 nm	3.1 V	Blue		2.05 mm	4-PLCC		30 mA	Standard
Cree LED CLM4B-RKB-CWAXBAA3	Surface Mount			4-PLCC	624 nm	2.4 V	Red	1960 mcd	2.05 mm	4-PLCC		50 mA	Standard
Cree LED CLM4B-GKW-CXAYA793	Surface Mount			4-PLCC		3.6 V	Green	2675 mcd	2.05 mm	4-PLCC		30 mA	Standard	Colorless	Clear	527 nm
Cree LED CLM4B-GKW-CWBYA693	Surface Mount			4-PLCC		3.6 V	Green	2475 mcd	2.05 mm	4-PLCC		30 mA	Standard	Colorless	Clear	527 nm
Cree LED CLM4B-BKC-CUAVA453	Surface Mount	1.3 mm	3.2 mm	4-PLCC	470 nm	3.1 V	Blue	675 mcd	2.1 mm	4-PLCC	2.2 mm	30 mA
Cree LED CLM4B-GKC-CXBYB793	Surface Mount	1.3 mm	3.2 mm	4-PLCC	528 nm	3.1 V	Green	3370 mcd	2.1 mm	4-PLCC	2.2 mm	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue 470nm LED Indication - Discrete 3.6V 4-PLCC

Technical documentation and resources
