CIRP03T32A13PV0N
ActiveTE Connectivity AMP Connectors

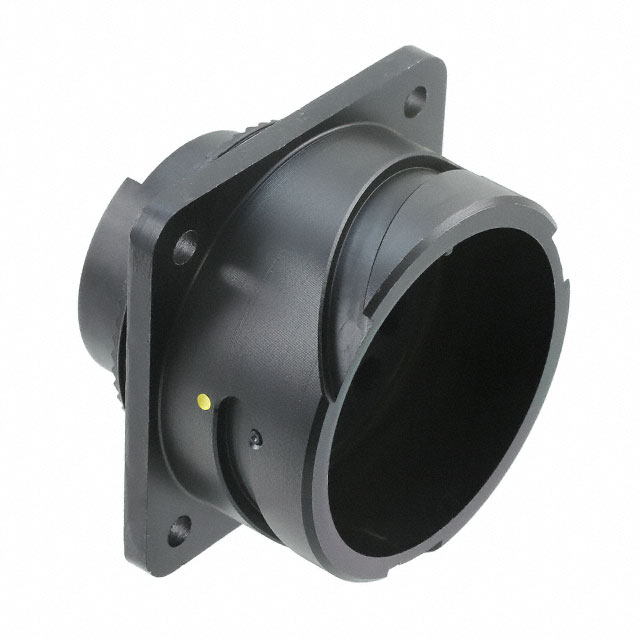

CONN RCPT HSNG MALE 13POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRP03T32A13PV0N
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 13POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRP03T32A13PV0N | CIRP03 Series |
|---|---|---|
| Connector Type | Receptacle Housing | Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 12 | 8 - 16 |
| Contact Type | Crimp | Crimp |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Flange | Flange |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 13 | 7 - 60 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Orientation | N | N |
| Shell Finish | Chromate over Zinc Cobalt | Chromate over Zinc Cobalt |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 32-A13 | 32-A13, 40-A60, 40-A35, 22-14 |
| Shell Size - Insert | - | 10 - 21 |
| Shell Size - Insert | - | 18 - 28 |
| Shielding | Unshielded | Unshielded |
| Type | For Male Pins | For Female Sockets, For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 34.90 | |
CIRP03 Series
CONN RCPT HSG FMALE 37POS PNL MT
| Part | Type | Shell Finish | Note | Contact Size | Mounting Feature | Number of Positions | Contact Type | Insert Material | Connector Type | Ingress Protection | Shielding | Contact Shape | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Material | Orientation | Fastening Type | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRP03T2821SV0N | For Female Sockets | Chromate over Zinc Cobalt | Contacts Not Included | 16 | Flange | 37 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | 21 | 28 | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | |
TE Connectivity AMP Connectors CIRP03T32A13PV0N | For Male Pins | Chromate over Zinc Cobalt | Contacts Not Included | 12 | Flange | 13 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | 32-A13 | ||
TE Connectivity AMP Connectors CIRP03T40A60PV0N | For Male Pins | Chromate over Zinc Cobalt | Contacts Not Included | 16 | Flange | 60 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | 40-A60 | ||
TE Connectivity AMP Connectors CIRP03T40A35PV0N | For Male Pins | Chromate over Zinc Cobalt | Contacts Not Included | 12 | Flange | 35 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | 40-A35 | ||
TE Connectivity AMP Connectors CIRP03T2214PV0N | For Male Pins | Chromate over Zinc Cobalt | Contacts Not Included | 16 | Flange | 19 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | 22-14 | ||
TE Connectivity AMP Connectors CIRP03T1819SV0N | For Female Sockets | Chromate over Zinc Cobalt | Contacts Not Included | 16 | Flange | 10 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | 19 | 18 | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C | |
TE Connectivity AMP Connectors CIRP03T2410PV0N | For Male Pins | Chromate over Zinc Cobalt | Contacts Not Included | 8 | Flange | 7 | Crimp | Thermoplastic | Receptacle Housing | IP67 - Dust Tight, Waterproof | Unshielded | Circular | 10 | 24 | Aluminum Alloy | N | Reverse Bayonet Lock | Black | 125 °C | -45 °C |
Description
General part information
CIRP03 Series
13 Position Circular Connector Receptacle Housing Panel Mount
