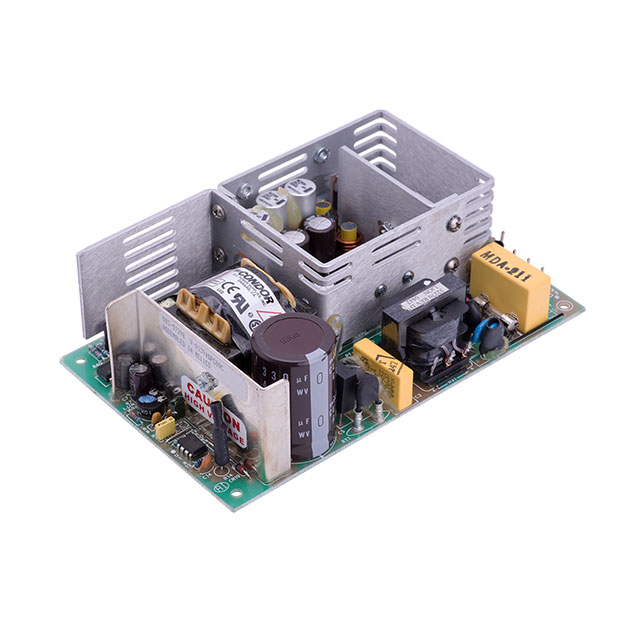

GPM80PG

Obsolete

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V -12V 12V 80W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V -12V 12V 80W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 4 Output 5V 24V -12V 12V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GPM80PG	GPM80 Series

Applications	Medical	Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	12 A	12 A
Current - Output 2	3.5 A	3 - 3.5 A
Current - Output 4	2 A	1 - 2 A
Efficiency	70 %	70 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	4
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	80 W, 110 W	80 - 110 W
Size / Dimension [x]	7 "	7 "
Size / Dimension [x]	177.8 mm	177.8 mm
Size / Dimension [y]	108 mm	108 mm
Size / Dimension [y]	4.25 in	4.25 in
Size / Dimension [z]	1.86 in	1.86 in
Size / Dimension [z]	47.2 mm	47.2 mm
Type	Open Frame	Open Frame
Voltage - Output 1	5 V	5 V
Voltage - Output 2	24 V	12 - 24 V
Voltage - Output 3	-12 V	-12 V
Voltage - Output 4	12 V	12 V

AC/DC CNVRTR 5V 24V -12V 12V 80W

Part	Applications	Number of Outputs	Voltage - Output 2	Minimum Load Required	Approval Agency	Voltage - Output 3	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Voltage - Output 4	Current - Output 4	Features	Power (Watts)	Mounting Type	Current - Output 1
SL POWER / Advanced Energy GPM80PG	Medical	4	24 V		CE, cURus, TUV	-12 V	70 %	7 "	108 mm	1.86 in	177.8 mm	4.25 in	47.2 mm	Open Frame	5 V	0 °C	50 °C	3.5 A	12 V	2 A	Adjustable Output, Remote Sense, Universal Input	80 W, 110 W	Chassis Mount	12 A
SL POWER / Advanced Energy GPM80AG	Medical	4	12 V		CE, cURus, TUV	-12 V	70 %	7 "	108 mm	1.86 in	177.8 mm	4.25 in	47.2 mm	Open Frame	5 V	0 °C	50 °C	3 A	12 V	1 A	Adjustable Output, Remote Sense, Universal Input	80 W, 110 W	Chassis Mount	12 A
