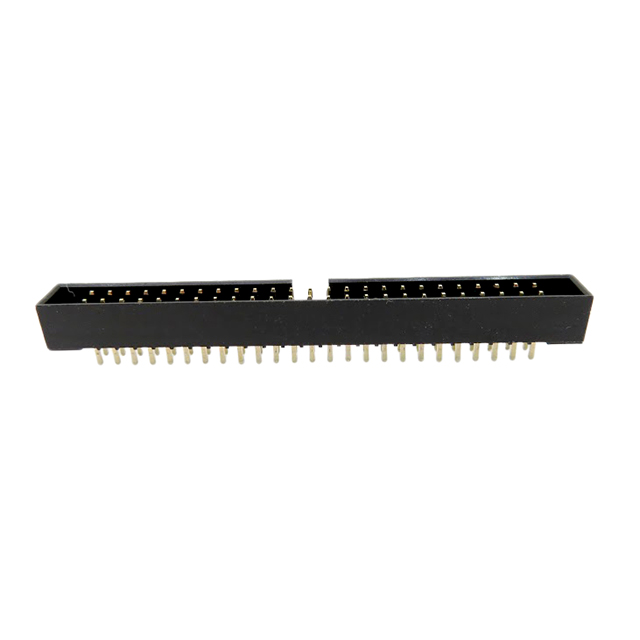

BHR-50-VUA

Active

Adam Tech

2 GOLD 2.54MM -55℃~+105℃ BRASS STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Search across all available documentation for this part.

Active

Adam Tech

2 GOLD 2.54MM -55℃~+105℃ BRASS STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-50-VUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.346 in
Insulation Height [z]	8.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Finish - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Features	Style	Contact Finish Thickness - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Number of Positions	Termination	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Contact Finish - Post	Insulation Color	Contact Shape	Insulation Material	Number of Positions Loaded	Voltage Rating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech BHR-50-VUA	Gold	UL94 V-0	0.13 in	3.3 mm	Keying Slot	Board to Board Cable	Flash	Through Hole	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	105 ░C	-55 °C	Brass	0.346 in	8.8 mm	3 A	50	Solder	Flash	0.1 in	2.54 mm	Header	2	Gold	Black	Square	Polybutylene Terephthalate (PBT)	All	250 VAC	Male Pin
Adam Tech BHR-50-HUA	Gold	UL94 V-0			Keying Slot	Board to Board Cable	Flash	Through Hole Right Angle	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	105 ░C	-40 °C	Brass	0.356 in	9.05 mm		50	Solder	Flash	0.1 in	2.54 mm	Header	2	Gold	Black	Square	Polybutylene Terephthalate (PBT) Glass Filled	All	250 VAC	Male Pin	0.134 in	3.4 mm
