MAX1258EVKIT

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX1258

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX1258

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX1258EVKIT	MAX1258 Series

Data Interface	-	Serial
Function	ADC, DAC	ADC, DAC
Mounting Type	-	Surface Mount
Number of Channels	-	16
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	48-WFQFN Exposed Pad
Resolution (Bits)	-	12 b
Sampling Rate (Per Second)	-	225 k
Secondary Attributes	Graphical User Interface (GUI)	Graphical User Interface (GUI)
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	48-TQFN (7x7)
Type	Data Acquisition	DAC, ADC, Data Acquisition
Utilized IC / Part	MAX1258	MAX1258
Voltage - Supply	-	4.75 V
Voltage - Supply	-	5.25 V
Voltage Supply Source	-	Analog and Digital

IC ADC/DAC 12BIT 225K 48TQFN

Part	Number of Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Resolution (Bits)	Supplier Device Package	Voltage Supply Source	Data Interface	Sampling Rate (Per Second)	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Secondary Attributes	Function	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX1258BETM+T	16	4.75 V	5.25 V	ADC, DAC	12 b	48-TQFN (7x7)	Analog and Digital	Serial	225 k	48-WFQFN Exposed Pad	Surface Mount	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated MAX1258BETM+	16	4.75 V	5.25 V	ADC, DAC	12 b	48-TQFN (7x7)	Analog and Digital	Serial	225 k	48-WFQFN Exposed Pad	Surface Mount	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated MAX1258EVKIT				Data Acquisition										MAX1258	Graphical User Interface (GUI)	ADC, DAC	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 334.07

General part information

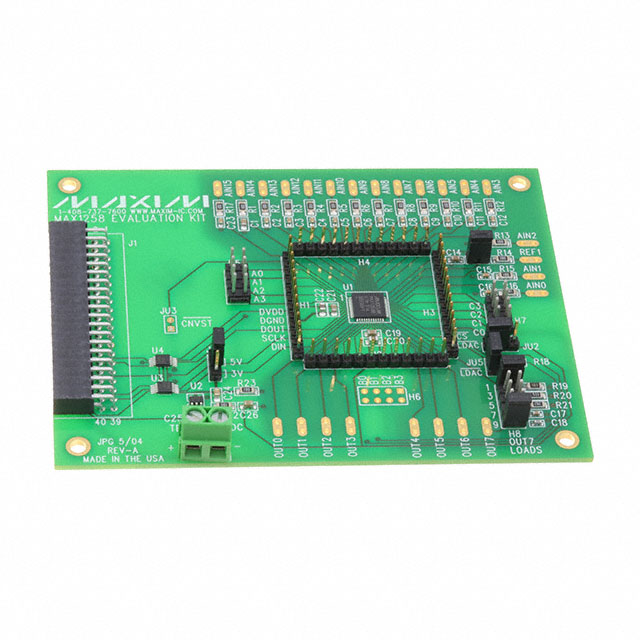

MAX1258 ADC, DAC Data Acquisition Evaluation Board
