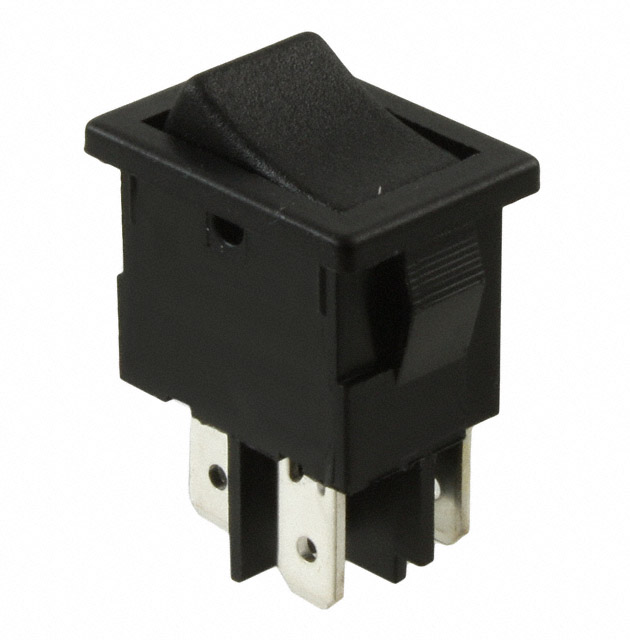

H8550VBBB
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 15A 250V
Deep-Dive with AI
Search across all available documentation for this part.
H8550VBBB
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 15A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H8550VBBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.3 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.72 | |
| 10 | $ 5.10 | |||
| 25 | $ 4.83 | |||
| 50 | $ 4.65 | |||
| 100 | $ 4.43 | |||
| 250 | $ 4.23 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.66 | |||
Description
General part information
H8550VB Series
Rocker Switch DPST 15A (AC) 250 V Panel Mount, Snap-In
