A8WD-1163

Obsolete

Omron Electronics Inc-EMC Div

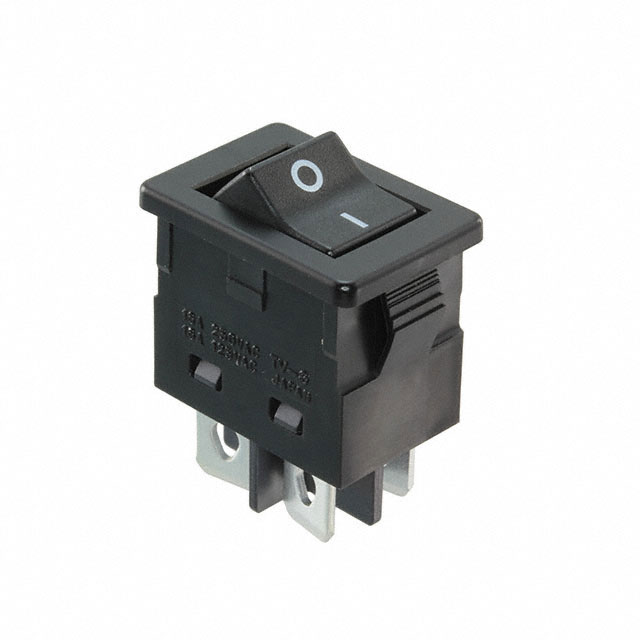

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A8WD-1163

Obsolete

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A8WD-1163

Actuator Marking	O -
Actuator Type	Concave (Standard V)
Approval Agency	cULus, EN, UL
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.3 mm
Panel Cutout Dimensions [y]	14.8 mm
Switch Function	On-Off
Voltage Rating - AC	125 V

- Series

Part	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Voltage Rating - AC	Current Rating (Amps)	Circuit	Actuator Marking	Ingress Protection	Mounting Type	Approval Agency	Actuator Type	Electrical Life	Termination Style	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions	Timing Adjustment Method	Delay Time [Max]	Delay Time [Min]	Relay Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Contact Rating @ Voltage	Timing Initiate Method	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage - Input	Voltage - Load [Max]	Voltage - Load [Min]	Output Type	Supplier Device Package	On-State Resistance (Max) [Max]	Load Current	Package / Case	Package / Case	Package / Case
Omron Electronics Inc-EMC Div A8A-203	On-Off	30 mm	22 mm	Green	125 V	16 A	DPST	No Marking	IP00	Panel Mount Snap-In	CSA EN UL	Flat	20000 Steps	Quick Connect - 0.250" (6.3mm)	40000 Cycles	50 °C	-25 °C
Omron Electronics Inc-EMC Div A8MD-1162	On-Off	19.2 mm	12.9 mm	Black	125 V	16 A	DPST	O I		Panel Mount Snap-In	cULus EN UL	Concave (Curved)	10000 Cycles			55 °C	-25 °C	Rectangular
Omron Electronics Inc-EMC Div H5S-B							SPST-NO (1 Form A) x 2							Screw Terminal					Up/Down Digit Keys	1 Year	1 Min	Mechanical Relay	100 VAC	240 VAC	Programmable (Multi-Function)	15 A 250 VAC	Input Voltage
Omron Electronics Inc-EMC Div BK-1080
Omron Electronics Inc-EMC Div A8A-205	On-Off	30 mm	22 mm	Yellow	125 V	16 A	DPST	No Marking	IP00	Panel Mount Snap-In	CSA EN UL	Flat	20000 Steps	Quick Connect - 0.250" (6.3mm)	40000 Cycles	50 °C	-25 °C
Omron Electronics Inc-EMC Div A8WD-1163	On-Off	22.3 mm	14.8 mm	Black	125 V	16 A	DPST	O -	IP67 - Dust Tight Waterproof	Panel Mount Snap-In	cULus EN UL	Concave (Standard V)	10000 Cycles			55 °C	-25 °C
Omron Electronics Inc-EMC Div A8A-226	On-Off	30 mm	22 mm	Orange	125 V	16 A	DPST	No Marking	IP00	Panel Mount Snap-In	CSA EN UL	Flat - Illuminated	20000 Steps	Quick Connect - 0.250" (6.3mm)	40000 Cycles	50 °C	-25 °C											Neon Orange	220 VAC/DC
Omron Electronics Inc-EMC Div G3VM-W							SPST-NO (1 Form A) x 2			Through Hole				PC Pin		85 °C	-40 °C													1.15 VDC	350 V	0 V	AC DC	8-DIP	35 Ohm	120 mA	0.3 in	8-DIP	7.62 mm
Omron Electronics Inc-EMC Div A8MS-1162	On-Off	19.2 mm	12.9 mm	Black	125 V	16 A	SPST	O I		Panel Mount Snap-In	cULus EN UL	Concave (Curved)	10000 Cycles			55 °C	-25 °C	Rectangular
Omron Electronics Inc-EMC Div H5F-B														Screw Terminal					Up/Down Digit Keys	24 Hrs	1 Min	Mechanical Relay	100 VAC	240 VAC	Programmable (Multi-Function)	15 A 250 VAC	Input Voltage
