HFCC-BH-8-01

Active

Essentra Access Solutions

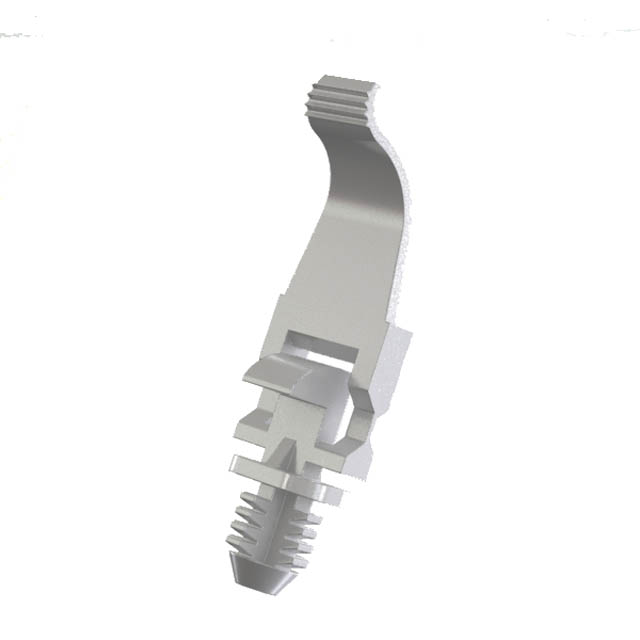

FASTENER, HINGED SPRING CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 29.8 MM, 13.9 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, HINGED SPRING CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 29.8 MM, 13.9 MM

Technical Specifications

Parameters and characteristics for this part

Specification	HFCC-BH-8-01

Color	Natural
Height [z]	11.13 mm
Height [z]	0.438 in
Length	29.77 mm
Length	1.172 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fir Tree, Blind Hole
Panel Hole Size	0.312 in
Panel Hole Size	7.92 mm
Panel Thickness	0.25 "
Panel Thickness	6.35 mm
Type	Flat, Clip
Type Attributes	Hinged
Width	0.547 "
Width	13.89 mm

Part	Color	Material	Type Attributes	Material Flammability Rating	Panel Thickness	Panel Thickness	Type	Height [z]	Height [z]	Mounting Type	Panel Hole Size	Panel Hole Size	Width	Width	Length	Length
Essentra Access Solutions HFCC-BH-8-01	Natural	Polyamide (PA66) Nylon 6/6	Hinged	UL94 V-2	0.25 "	6.35 mm	Clip Flat	11.13 mm	0.438 in	Blind Hole Fir Tree	0.312 in	7.92 mm	0.547 "	13.89 mm	29.77 mm	1.172 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Fir Tree, Blind Hole

Technical documentation and resources
