ACZ11BR1E-15KQA1-12C

Active

CUI Devices

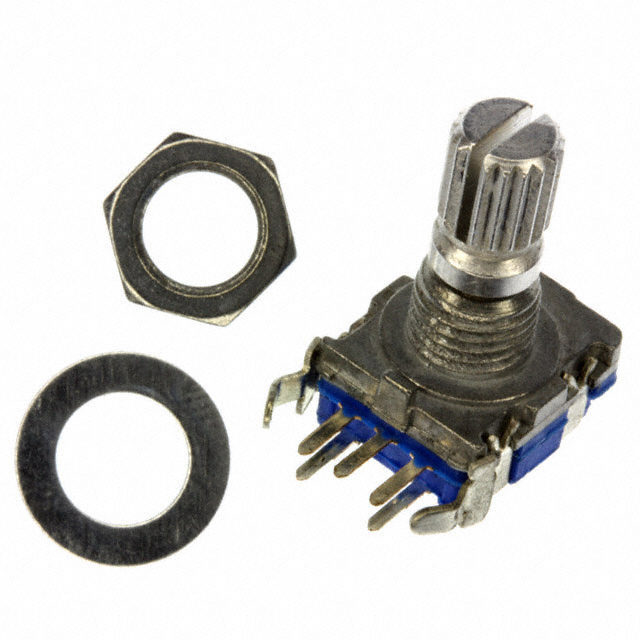

MECHANICAL ENCODER ROTARY INCREMENTAL KNURL 0.02N.M RIGHT ANGLE QUADRATURE DIGITAL SQUARE WAVE 12PPR THROUGH HOLE PC PIN

Search across all available documentation for this part.

Active

CUI Devices

MECHANICAL ENCODER ROTARY INCREMENTAL KNURL 0.02N.M RIGHT ANGLE QUADRATURE DIGITAL SQUARE WAVE 12PPR THROUGH HOLE PC PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACZ11BR1E-15KQA1-12C	ACZ11BR1 Series

Actuator Type	Knurled End	Knurled End, Flatted End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	True	True
Detent	True	True
Encoder Type	Incremental	Incremental
Mounting Type	PCB Through Hole, Panel	PCB Through Hole, Panel
Orientation	Right Angle	Vertical, Right Angle
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	12 pulses per revolution	12 - 20
Rotational Life (Cycles Min) [Min]	30K	30K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER INCREMENT 20PPR

Part	Orientation	Encoder Type	Termination Style	Pulses per Revolution	Actuator Type [diameter]	Actuator Type	Rotational Life (Cycles Min) [Min]	Mounting Type	Output Type
CUI Devices ACZ11BR1E-20KQD1-20C	Vertical	Incremental	PC Pin	20	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-15KQD1-20C	Vertical	Incremental	PC Pin	20	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-15KQA1-12C	Right Angle	Incremental	PC Pin	12 pulses per revolution	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-15KQA1-12C	Right Angle	Incremental	PC Pin	12 pulses per revolution	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-20KQA1-20C	Right Angle	Incremental	PC Pin	20	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-15FA1-20C	Right Angle	Incremental	PC Pin	20	6 mm	Flatted End	30K	Panel, PCB Through Hole	Quadrature (Incremental)
CUI Devices ACZ11BR1E-15KQA1-20C	Right Angle	Incremental	PC Pin	20	6 mm	Knurled End	30K	Panel, PCB Through Hole	Quadrature (Incremental)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental 12 Quadrature (Incremental) Right Angle
