2016-1307

Active

WAGO Corporation

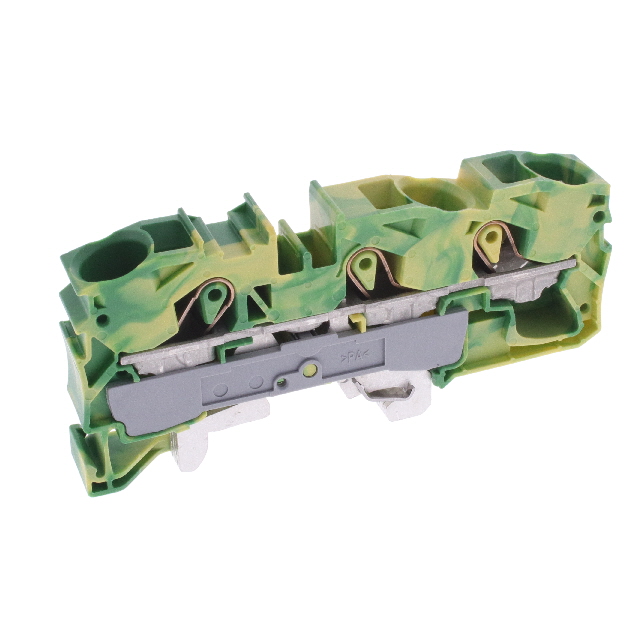

3-CONDUCTOR GROUND TERMINAL BLOC

Search across all available documentation for this part.

Active

WAGO Corporation

3-CONDUCTOR GROUND TERMINAL BLOC

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A

Part	Type	Voltage - UL	Terminal - Width [y]	Current - UL	Voltage - IEC	Color	Stripping Length [Min]	Stripping Length [Max]	Current - IEC	Material - Insulation	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style
WAGO Corporation 2016-1301	Feed Through	600 V	12 mm	85 A	800 V	Gray	18 mm	20 mm	90 A	Polyamide (PA66), Nylon 6/6	16 mm²	6 mm²	1	14 AWG	6 AWG	Push In, Spring
WAGO Corporation 2016-1307	Ground, Earth		12 mm			Green, Yellow	18 mm	20 mm		Polyamide (PA66), Nylon 6/6	16 mm²	6 mm²	1	14 AWG	6 AWG	Push In, Spring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Ground, Earth Green, Yellow 6-14 AWG
