MS23BNW03

Obsolete

NKK Switches

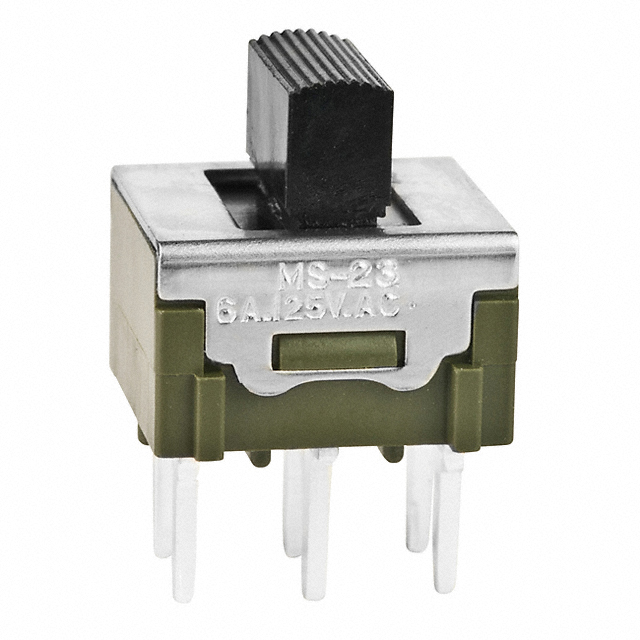

SLIDE SWITCH, 3 POSITIONS, DPDT, ON-OFF-ON, HORIZONTAL, 6 PCB HOLE CNT, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT,

Search across all available documentation for this part.

Obsolete

NKK Switches

SLIDE SWITCH, 3 POSITIONS, DPDT, ON-OFF-ON, HORIZONTAL, 6 PCB HOLE CNT, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT,

Technical Specifications

Parameters and characteristics for this part

Specification	MS23BNW03

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel	3.5 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Termination Style	Contact Material	Actuator Type	Electrical Life	Circuit	Features	Actuator Length [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Mechanical Life	Contact Timing	Actuator Material	Contact Finish	Switch Function	Switch Travel
NKK Switches MS23BNW03	PC Pin	Silver Alloy	Standard	25000 Steps	DPDT	Epoxy Sealed Terminals	5.1 mm	-30 ░C	85 °C	125 V	Through Hole	6 A	100000 Cycles	Non-Shorting	Polybutylene Terephthalate (PBT) Glass Filled	Silver	On-Off-On	3.5 mm
