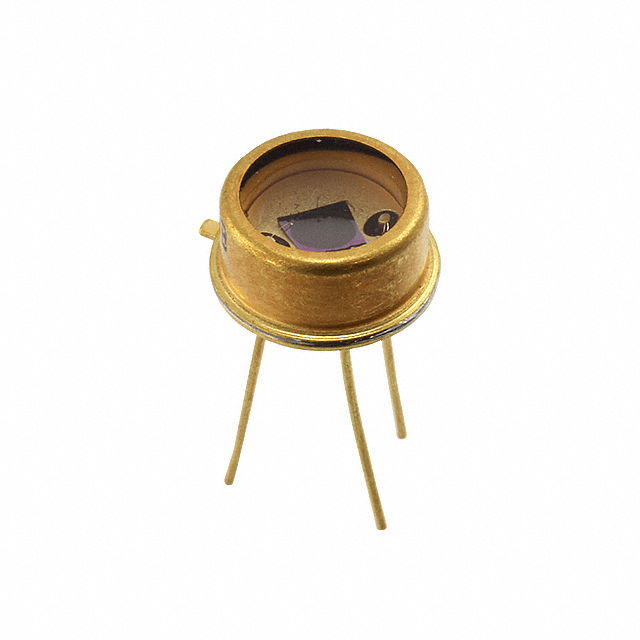

ODD-5WB

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 940NM TO5

Part	Mounting Type	Active Area	Response Time	Wavelength	Current - Dark (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Color - Enhanced	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Responsivity @ nm	Spectral Range [Max] [custom]	Spectral Range [Min] [custom]
Opto Diode Corp ODD-5WBISOL	Through Hole	5 mm²	10 ns	940 nm	1 nA	60 V	100 °C	-55 °C	Blue	1100 nm	400 nm	0.28 A/W
Opto Diode Corp ODD-5W	Through Hole	5 mm²	10 ns	940 nm	1 nA	60 V	100 °C	-55 °C	Red			0.4 A/W	1100 nm	300 nm
Opto Diode Corp ODD-5WB	Through Hole	5 mm²	10 ns	940 nm	1 nA	60 V	100 °C	-55 °C	Blue	1100 nm	400 nm	0.28 A/W
Opto Diode Corp ODD-5WISOL	Through Hole	5 mm²	10 ns	940 nm	1 nA	60 V	100 °C	-55 °C	Red			0.4 A/W	1100 nm	300 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.01

General part information

Photodiode 940nm 10ns

Technical documentation and resources
