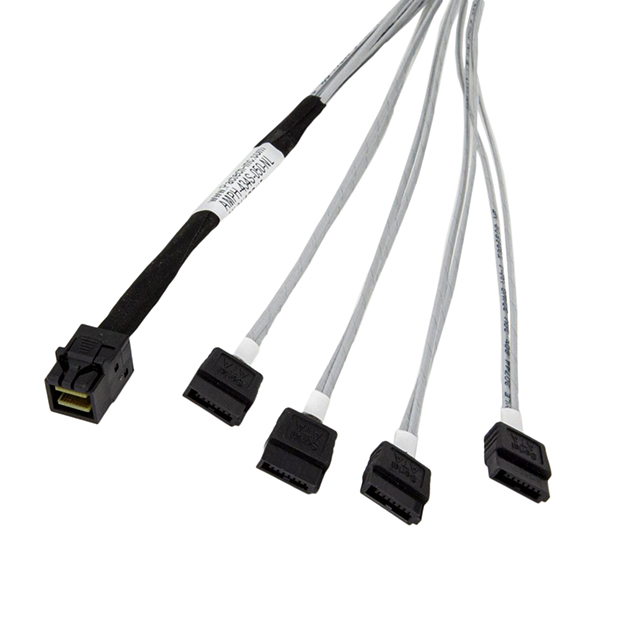

AMPH-434S-050-NL

Active

Pactech

HDMINISAS TO 4XSATA NOLATCH .25M

Search across all available documentation for this part.

Active

Pactech

HDMINISAS TO 4XSATA NOLATCH .25M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMPH-434S-050-NL	AMPH-434S Series

Cable Connectors	SATA (4), miniSAS HD 4i	SATA (4), miniSAS HD 4i
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Receptacle	Plug to Receptacle
Fastening Type	Latch Lock	Latch Lock
Features	Amphenol SFF-8643 to SATA 7Pin x4, 6Gbps SAS2.1	Amphenol SFF-8643 to SATA 7Pin x4, 6Gbps SAS2.1
Gender	Male to Female	Male to Female
Length	-	9.843 - 11.811 in
Length [x]	1.64 ft	0.984 - 9.84 '
Length [x]	500 mm	0.75 - 500 mm
Number of Positions	36, 7	7 - 36
Number of Positions	4	4
Shielding	Shielded	Shielded
Usage	Internal	Internal

AMPH HD MINISAS TO 4XSATA 0.25M

Part	Gender	Length [x]	Length [x]	Length [x]	Shielding	Number of Positions	Number of Positions	Usage	Fastening Type	Connector Type	Features	Color	Cable Type	Cable Connectors
Pactech AMPH-434S-030	Male to Female	11.811 in	300 mm	0.984 '	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-100	Male to Female		1 m	3.28 ft	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-050	Male to Female		500 mm	1.64 ft	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-025	Male to Female	9.843 in	250 mm	9.84 in	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-050	Male to Female		500 mm	1.64 ft	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-075	Male to Female		0.75 m	2.46 ft	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)
Pactech AMPH-434S-050-NL	Male to Female		500 mm	1.64 ft	Shielded	7, 36	4	Internal	Latch Lock	Plug to Receptacle	6Gbps SAS2.1, Amphenol SFF-8643 to SATA 7Pin x4	Black	Round	miniSAS HD 4i, SATA (4)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36, 7 (4) Position miniSAS HD 4i, SATA (4) Plug to Receptacle 1.64' (500.00mm) Black Shielded
