2-966292-4
ActiveTE Connectivity AMP Connectors

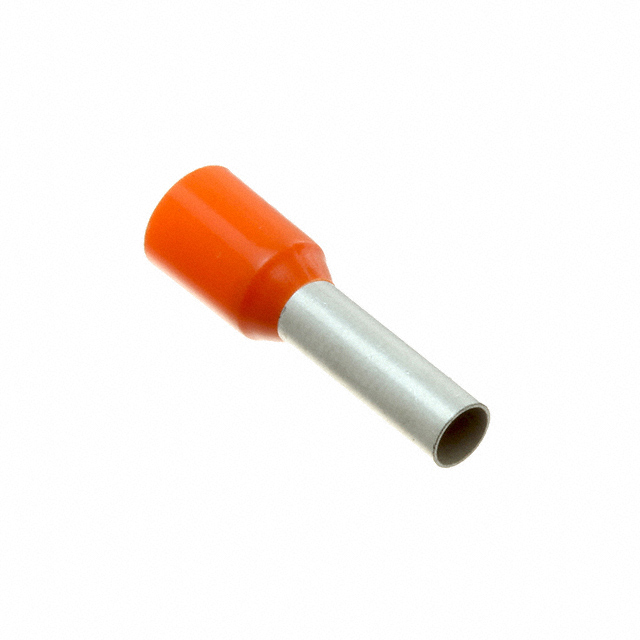

CONN FERRULE 11AWG ORANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-966292-4
ActiveTE Connectivity AMP Connectors
CONN FERRULE 11AWG ORANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-966292-4 | 966292 Series |
|---|---|---|
| Color | - | Black |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 17 mm | 17 - 30 mm |
| Length - Pin [x] | 10 mm | 10 - 16 mm |
| Size | 11 AWG | 3 - 11 AWG |
| Size | 4 mm² | 4 - 25 mm² |
| Type | Single Wire | Single Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
966292 Series
CONN FERRULE 3AWG BLACK
| Part | Color | Size | Size | Length - Pin [x] | Insulation | Length - Overall [x] | Type |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-966292-3 | Black | 25 mm² | 3 AWG | 16 mm | Insulated | 30 mm | Single Wire |
TE Connectivity AMP Connectors 2-966292-4 | 4 mm² | 11 AWG | 10 mm | Insulated | 17 mm | Single Wire |
Description
General part information
966292 Series
Orange Wire Ferrule Connector 11 AWG (4.00mm²) Single Wire
