3-966292-3
ActiveTE Connectivity AMP Connectors

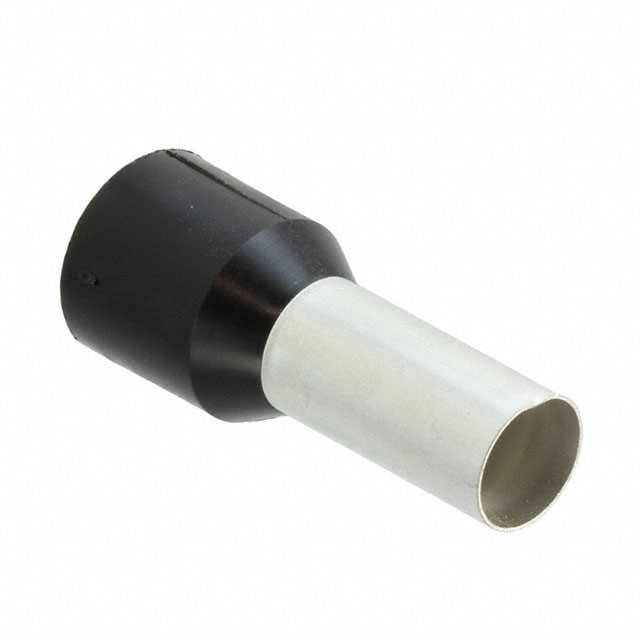

CONN FERRULE 3AWG BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-966292-3
ActiveTE Connectivity AMP Connectors
CONN FERRULE 3AWG BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-966292-3 | 966292 Series |
|---|---|---|
| Color | Black | Black |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 30 mm | 17 - 30 mm |
| Length - Pin [x] | 16 mm | 10 - 16 mm |
| Size | 25 mm² | 4 - 25 mm² |
| Size | 3 AWG | 3 - 11 AWG |
| Type | Single Wire | Single Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 0.94 | |||
| 2500 | $ 0.86 | |||
966292 Series
CONN FERRULE 3AWG BLACK
| Part | Color | Size | Size | Length - Pin [x] | Insulation | Length - Overall [x] | Type |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-966292-3 | Black | 25 mm² | 3 AWG | 16 mm | Insulated | 30 mm | Single Wire |
TE Connectivity AMP Connectors 2-966292-4 | 4 mm² | 11 AWG | 10 mm | Insulated | 17 mm | Single Wire |
Description
General part information
966292 Series
Black Wire Ferrule Connector 3 AWG (25.00mm²) Single Wire
