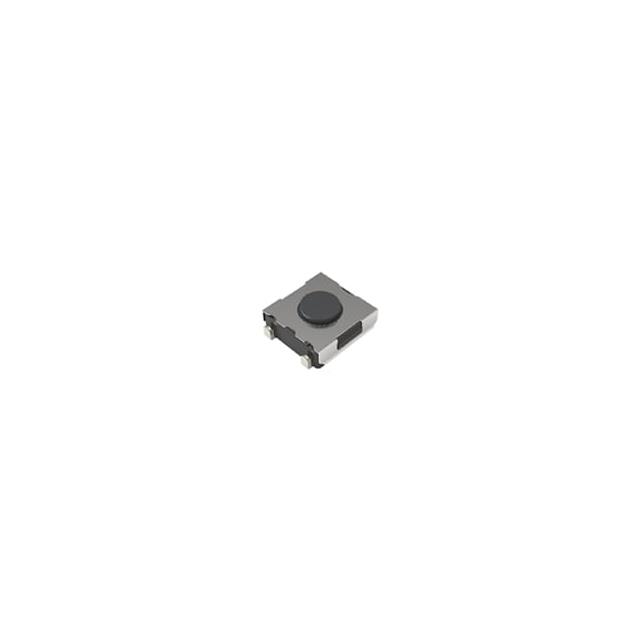

SKHUALE010

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 12VDC 1.57N SMD T/R

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 12VDC 1.57N SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SKHUALE010

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Termination Style	Actuator Height off PCB, Vertical [z]	Mechanical Life	Outline [y]	Outline [x]	Actuator Orientation	Illumination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Actuator Type	Circuit	Contact Rating @ Voltage	Switch Function	Operating Force
Alps Alpine SKHUALE010	J Lead	2.5 mm	300000 Cycles	6.2 mm	6.2 mm	Top Actuated	Non-Illuminated	Surface Mount	85 °C	-40 °C	0.25 mm	Round Button	SPST-NO	0.05 A 12 VDC	Off-Mom
Alps Alpine SKHUAME010	J Lead	2.5 mm	100000 Cycles	6.3 mm	6.2 mm	Top Actuated	Non-Illuminated	Surface Mount	85 °C	-40 °C	0.25 mm	Round Button	SPST-NO	0.05 A 12 VDC	Off-Mom	260 gf
Alps Alpine SKHUAKE010	J Lead	2.5 mm	300000 Cycles	6.2 mm	6.3 mm	Top Actuated	Non-Illuminated	Surface Mount	85 °C	-40 °C	0.25 mm	Standard	SPST-NO	0.05 A 12 VDC	Off-Mom	100 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
