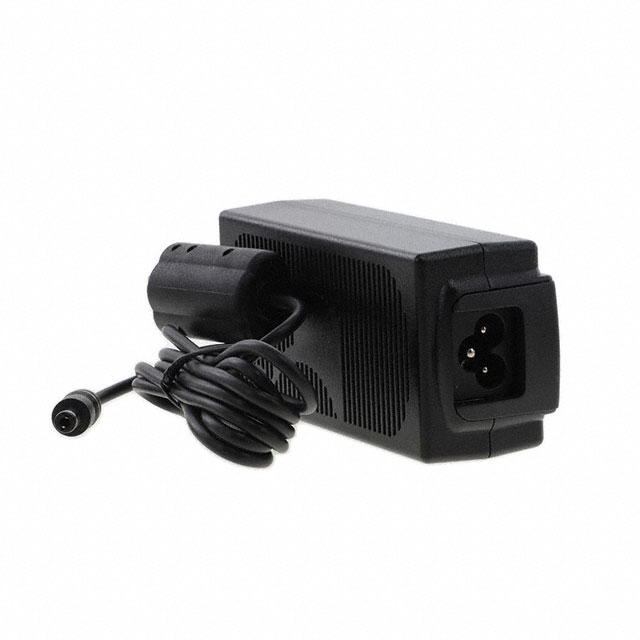

Specification	RR9LI2700LCP-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	cETLus, CE, PSE, ETL, UKRSepro, VCCI, S-Mark, FCC, EAC, CB
Cord Length	60.2 in
Current - Output (Max)	2.7 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class I), Desktop
Input Connector	Multi-Blade (Sold Separately), IEC 320-C6
Input Type	Multi-Blade (Sold Separately), Cord
No Load Power Consumption (Max)	150 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.5 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension Height	1.44 in
Size / Dimension Length	4.63 in
Size / Dimension Width	2.11 in
Standard Number	60601-1-11, 62368-1, 60601-1-2
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	24 V

RR9LI2700 Series

Part	Input Type	Efficiency	Polarization	Region Utilized	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Standard Number	Cord Length	No Load Power Consumption (Max)	Approval Agency	Current - Output (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Output	Form	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Input Connector
GlobTek, Inc. RR9LI2700LCP-IMR6B	Cord Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	Positive Center	International	1.44 in	4.63 in	2.11 in	60601-1-11 60601-1-2 62368-1	60.2 in	150 mW	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI	2.7 A	90 V	264 V	24 V	Desktop Wall Mount (Class I)	65 W	40 °C	-20 °C	ITE (Commercial) Medical	2.5 mm	Barrel Plug	11 mm	5.5 mm	IEC 320-C6 Multi-Blade (Sold Separately)
GlobTek, Inc. RR9LI2700CCP-IMR6B	Cord Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	Positive Center	International	1.44 in	4.63 in	2.11 in	60601-1-11 60601-1-2 62368-1	60.2 in	150 mW	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI	2.7 A	90 V	264 V	24 V	Desktop Wall Mount (Class I)	65 W	40 °C	-20 °C	ITE (Commercial) Medical	2.1 mm	Barrel Plug	11 mm	5.5 mm	IEC 320-C6 Multi-Blade (Sold Separately)
