PR20B03HBDN

Active

METZ CONNECT USA Inc.

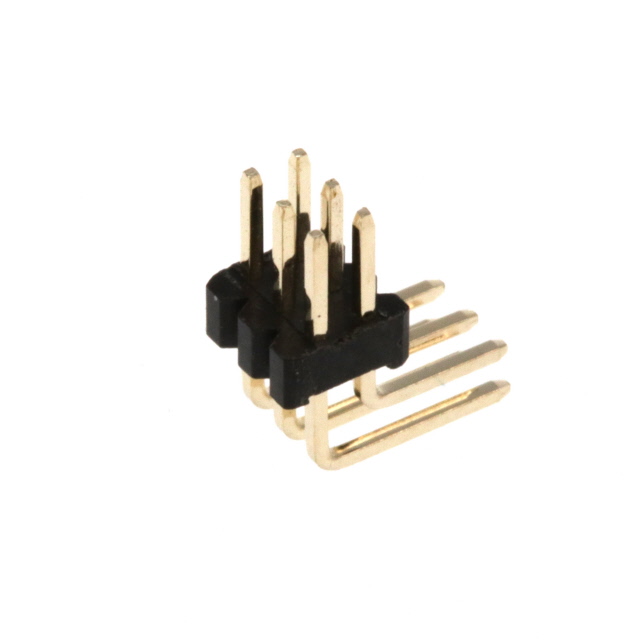

PIN HEADER, THR, DUAL ROW, 1.27

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, DUAL ROW, 1.27

Technical Specifications

Parameters and characteristics for this part

Specification	PR20B03HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Polyethylene
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Material	Insulation Height	Insulation Height	Number of Rows	Number of Positions Loaded	Insulation Color	Contact Finish - Mating	Connector Type	Mounting Type	Termination	Shrouding	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Insulation Material
METZ CONNECT USA Inc. PR20B03HBDN	0.05 in	1.27 mm	6	3 mm	0.118 in	0.11 in	2.79 mm	-40 °C	105 ░C	Flash	Copper Zinc	1.5 mm	0.059 "	2	All	Black	Gold	Header	Through Hole Right Angle	Solder	Unshrouded	Square	0.05 in	1.27 mm	Male Pin	Push-Pull	Polyethylene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	13000	$ 0.12

General part information

Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm)
