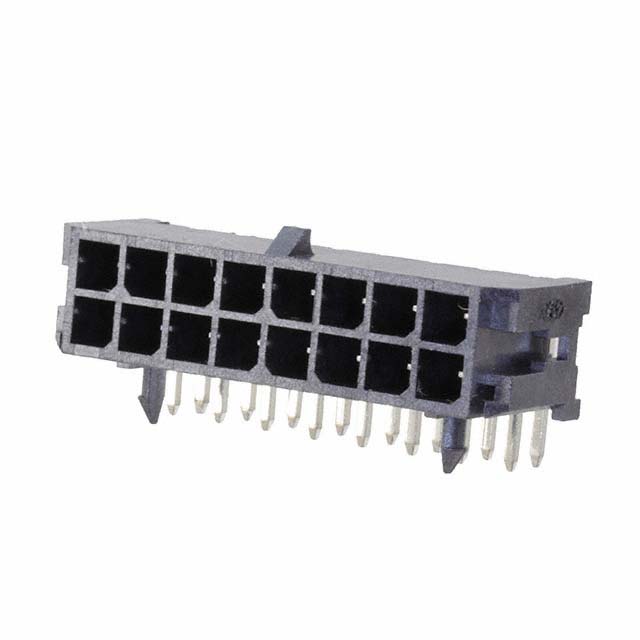

Specification	DML-16-A-H-T-A

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.27 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

DML-16 Series

Part	Contact Material	Material Flammability Rating	Voltage Rating	Contact Finish - Mating	Pitch - Mating	Contact Shape	Connector Type	Contact Length - Post	Number of Positions Loaded	Fastening Type	Insulation Height	Style	Insulation Color	Features	Shrouding	Current Rating	Current Rating	Number of Positions	Contact Type	Mounting Type	Row Spacing - Mating	Number of Rows	Insulation Material	Termination	Contact Finish - Post	Voltage Rating (Type)	Operating Temperature (Max)	Operating Temperature (Min)
Adam Tech DML-16-A-H-T-A-SBL	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header	0.126 in	All	Locking Ramp	0.29 in	Board Cable/Wire	Black	Board Lock	Shrouded - 4 Wall	0 A	Varies by Wire Gauge	16	Male Pin	Right Angle Through Hole	0.118 in	2	Thermoplastic	Solder	Tin
Adam Tech DML-16-A-H-T-A-TSMT-T/R	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header		All	Locking Ramp	0.289 in	Board Cable/Wire	Natural	Solder Retention	Shrouded - 4 Wall	5 A		16	Male Pin	Right Angle Surface Mount	0.118 in	2	Thermoplastic	Solder	Tin	DC	85 °C	-25 °C
Adam Tech DML-16-A-H-T-A	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header	0.125 in	All	Locking Ramp	0.27 in	Board Cable/Wire	Black	Board Lock	Shrouded - 4 Wall	0 A	Varies by Wire Gauge	16	Male Pin	Right Angle Through Hole	0.118 in	2	Thermoplastic	Solder	Tin
Adam Tech DML-16-A-V-T-A	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header	0.125 in	All	Locking Ramp	0.39 in	Board Cable/Wire	Black	Board Guide	Shrouded - 4 Wall	0 A	Varies by Wire Gauge	16	Male Pin	Through Hole	0.118 in	2	Thermoplastic	Kinked Pin Solder	Tin		125 °C	-45 °C
Adam Tech DML-16-A-V-T-SMT-BL-PP-T/R	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header		All	Locking Ramp	0.39 in	Board Cable/Wire	Black	Board Lock	Shrouded - 4 Wall	5 A		16	Male Pin	Surface Mount	0.118 in	2	Thermoplastic	Solder	Tin	DC	85 °C	-25 °C
Adam Tech DML-16-A-V-T-TSMT-T/R	Brass	UL94 V-0	250 V	Tin	0.118 in	Square	Header		All	Locking Ramp	0.39 in	Board Cable/Wire	Black	Solder Retention	Shrouded - 4 Wall	5 A		16	Male Pin	Surface Mount	0.118 in	2	Thermoplastic	Solder	Tin	DC	105 °C	-25 °C
