095-850-261-012

Active

Amphenol RF

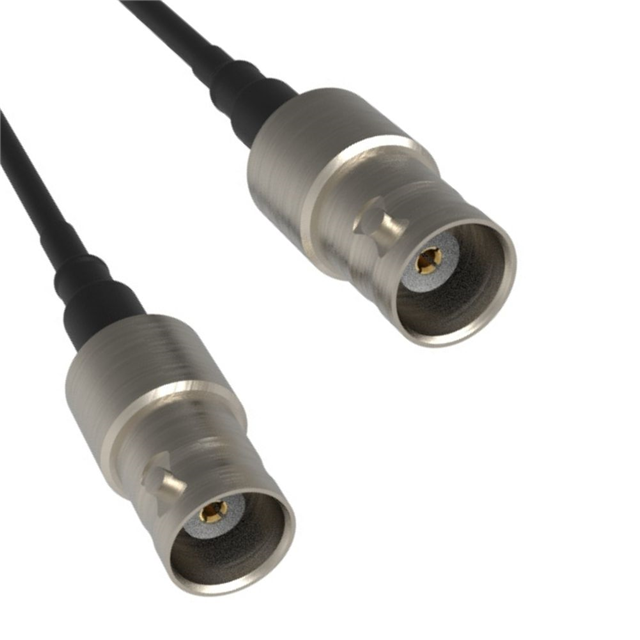

CBL ASSY BNC JACK TO JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

095-850-261-012

Active

Amphenol RF

CBL ASSY BNC JACK TO JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-850-261-012

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	BNC to BNC

095-850 Series

...

Part	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	1st Connector	2nd Contact Gender	1st Contact Gender	Overall Impedance	Features	Frequency - Max [Max]	Length	Length	Length	Style	Cable Type	Color	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Style	1st Connector Mounting Feature	Length [x]	Length [x]
Amphenol RF 095-850-218L050	Free Hanging (In-Line)	HD-BNC Plug	Free Hanging (In-Line)	BNC Plug	Male	Male	75 Ohms	Shielded	12 GHz	50 ft	15.2 m	50 ft	BNC to HD-BNC	Belden 4694R	Black
Amphenol RF 095-850-215M150	Free Hanging (In-Line)	HD-BNC Plug	Free Hanging (In-Line)	BNC Jack	Male	Female	75 Ohms	Shielded	12 GHz	4.9 ft	1.5 m	59.1 in	BNC to HD-BNC	Belden 4505R	Black
Amphenol RF 095-850-261-012	Free Hanging (In-Line)	BNC Jack	Free Hanging (In-Line)	BNC Jack	Female	Female	50 Ohms	Shielded	6000 MHz		304.8 mm	12 "	BNC to BNC	RG-174	Black	50 Ohms	85 °C	-40 °C
Amphenol RF 095-850-279M500	Free Hanging (In-Line)	BNC Plug	Free Hanging (In-Line)	BNC Plug	Male	Male	50 Ohms		3 GHz	16.4 ft	5 m	196.9 in	BNC to BNC	LMR 400	Black	50 Ohms	85 °C	-40 °C
Amphenol RF 095-850-157M050	Free Hanging (In-Line)	HD-BNC Plug	Free Hanging (In-Line)		Male	Male	75 Ohms	Shielded	4 GHz		50 cm	19.69 "	1.0/2.3	Belden 1694A	Black				HD-BNC
Amphenol RF 095-850-210-150	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Panel Mount	BNC Jack	Female	Female	50 Ohms	Shielded	4 GHz				U.FL (UMCC) AMC to BNC	RG-178	Copper	50 Ohms				Bulkhead - Front Side Nut	150 mm	5.906 "
Amphenol RF 095-850-164-006	Free Hanging (In-Line)	BNC Plug	Free Hanging (In-Line)	BNC Plug	Male	Male	75 Ohms	Shielded	4 GHz		152.4 mm	6 in	BNC to BNC	Belden 1855A	Black
Amphenol RF 095-850-216M050	Free Hanging (In-Line)	HD-BNC Plug	Free Hanging (In-Line)	BNC Jack	Male	Female	75 Ohms	Shielded	12 GHz		50 cm	19.69 "	BNC to HD-BNC	Belden 4694R	Black
Amphenol RF 095-850-230-012	Free Hanging (In-Line)	RP-TNC Jack	Free Hanging (In-Line)	RP-TNC Plug	Male	Female	50 Ohms	Shielded	8 GHz		304.8 mm	12 "	RP-TNC to RP-TNC	LMR 400	Black	50 Ohms
Amphenol RF 095-850-214-012	Free Hanging (In-Line)	HD-BNC Plug	Free Hanging (In-Line)	HD-BNC Plug	Male	Male	75 Ohms	Shielded	12 GHz		304.8 mm	12 "	HD-BNC to HD-BNC	Belden 4794R	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 18.97

Description

General part information

095-850 Series

Cable Assembly Coaxial BNC to BNC RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
