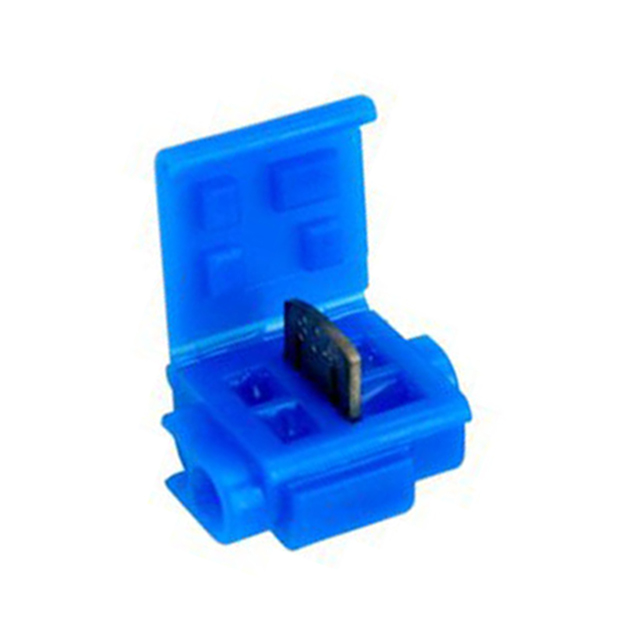

804-100/BAG

Active

3M (TC)

3M SCOTCHLOK ELECTRICAL IDC 804-100/BAG, RUN AND TAP, MOISTURE RESISTANT AND FLAME RETARDANT, BLUE, 18-16 AWG (SOLID/STRANDED),

Search across all available documentation for this part.

Active

3M (TC)

3M SCOTCHLOK ELECTRICAL IDC 804-100/BAG, RUN AND TAP, MOISTURE RESISTANT AND FLAME RETARDANT, BLUE, 18-16 AWG (SOLID/STRANDED),

Technical Specifications

Parameters and characteristics for this part

Specification	804-100/BAG

Color	Blue
Features	Gel Filled, Hinged Lid, Flame Retardant
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Inline, Tap (Suitcase)
Termination	IDC
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	14 AWG

Part	Features	Termination	Insulation	Terminal Type	Color	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]
3M (TC) 804-100/BAG	Flame Retardant Gel Filled Hinged Lid	IDC	Fully Insulated	Inline Tap (Suitcase)	Blue	2	14 AWG	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Inline, Tap (Suitcase) Connector IDC 14-18 AWG Blue
