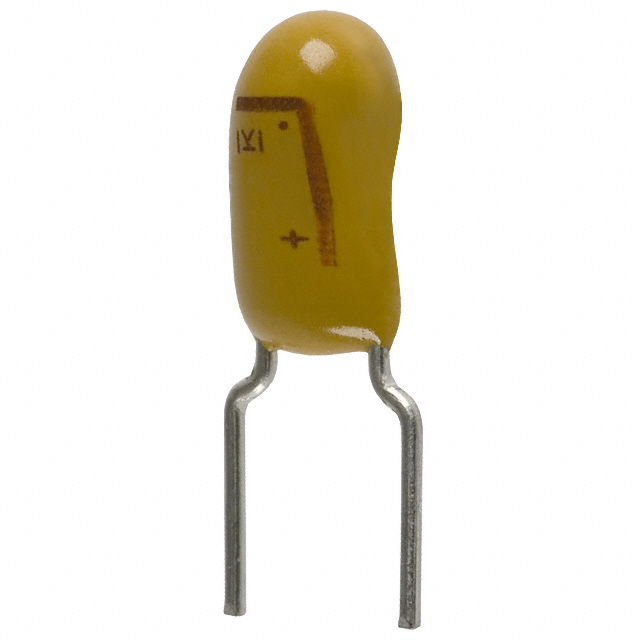

T356F336K010AS

Active

KEMET

CAP TANT 33UF 10% 10V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 33UF 10% 10V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T356F336K010AS

Capacitance	33 ÁF
ESR (Equivalent Series Resistance)	2.1 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	11.2 mm
Height - Seated (Max) [Max] [z]	0.441 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	F
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	10 V

Part	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	ESR (Equivalent Series Resistance)
KEMET T356F685K035AT7301	Conformal Coated	Radial	-55 °C	125 °C	35 V	Through Hole	5.08 mm	0.2 in	6.8 ÁF	11.2 mm	0.441 in	10 %	F	6 mm	0.236 in	General Purpose	2.5 Ohm
KEMET T356F476K006AS	Conformal Coated	Radial	-55 °C	125 °C	6.3 V	Through Hole	5.08 mm	0.2 in	47 µF	11.2 mm	0.441 in	10 %	F	6 mm	0.236 in	General Purpose	2 Ohms
KEMET T356F336M010AT	Conformal Coated	Radial	-55 °C	125 °C	10 V	Through Hole	5.08 mm	0.2 in	33 ÁF	11.2 mm	0.441 in	20 %	F	6 mm	0.236 in	General Purpose	2.1 Ohm
KEMET T356F336K010AS	Conformal Coated	Radial	-55 °C	125 °C	10 V	Through Hole	5.08 mm	0.2 in	33 ÁF	11.2 mm	0.441 in	10 %	F	6 mm	0.236 in	General Purpose	2.1 Ohm
KEMET T356F476K006AT	Conformal Coated	Radial	-55 °C	125 °C	6.3 V	Through Hole	5.08 mm	0.2 in	47 µF	11.2 mm	0.441 in	10 %	F	6 mm	0.236 in	General Purpose	2 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.74
