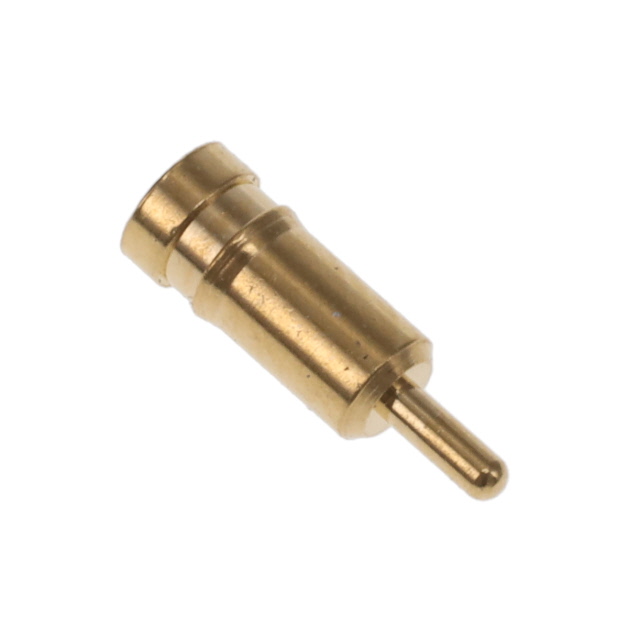

5714-0-15-15-34-27-04-0
ActiveMill-Max Manufacturing Corp.
RECEPTACLE WITH A STANDARD TAIL
Deep-Dive with AI
Search across all available documentation for this part.
5714-0-15-15-34-27-04-0
ActiveMill-Max Manufacturing Corp.
RECEPTACLE WITH A STANDARD TAIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5714-0-15-15-34-27-04-0 |
|---|---|
| Accepts Pin Diameter | 0.81 mm, 1.17 mm |
| Accepts Pin Diameter [Max] | 0.046 in |
| Accepts Pin Diameter [Min] | 0.032 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.29 mm |
| Flange Diameter [diameter] | 0.09 in |
| Length - Overall | 6.99 mm |
| Length - Overall [x] | 0.275 in |
| Mounting Hole Diameter [diameter] | 2.11 mm |
| Mounting Hole Diameter [diameter] | 0.083 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.63 mm |
| Pin Hole Diameter [diameter] | 0.064 in |
| Socket Depth | 0.17 in |
| Socket Depth | 4.32 mm |
| Tail Diameter | 0.03 in |
| Tail Diameter | 0.76 mm |
| Tail Type | Standard Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.12 | |
| 10 | $ 3.74 | |||
| 25 | $ 3.54 | |||
| 50 | $ 3.46 | |||
| 100 | $ 3.29 | |||
| 250 | $ 2.88 | |||
| 500 | $ 2.80 | |||
| 1000 | $ 2.39 | |||
| 3000 | $ 2.22 | |||
Description
General part information
5714-0 Series
Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Solder
Documents
Technical documentation and resources
No documents available
