2905494 - 2905494

2905494

Active
Phoenix Contact

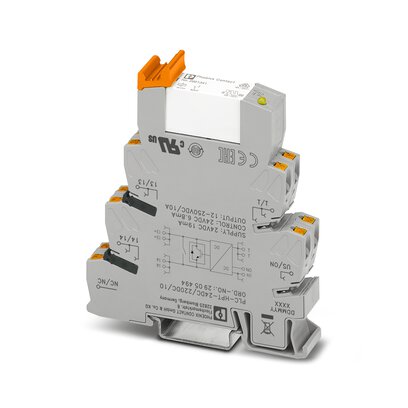

SOLID STATE RELAYS - INDUSTRIAL MOUNT PLC-HPT-24DC/220DC/10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
2905494 - 2905494

2905494

Active
Phoenix Contact

SOLID STATE RELAYS - INDUSTRIAL MOUNT PLC-HPT-24DC/220DC/10

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification2905494290549 Series
Approval AgencyIECIEC, EN, IEC, GOST
Load Current10 A5 - 10 A
Mounting TypeDIN RailDIN Rail, Socketable
Operating Temperature [Max]60 °C60 °C
Operating Temperature [Min]-25 °C-25 - -20 °C
Output TypeDCDC
Package / CaseModuleModule
Termination StyleScrew TerminalScrew Terminal, Plug In
Voltage - Input-24 V
Voltage - Input [Max]28.8 V28.8 V
Voltage - Input [Min]19.2 V19.2 V
Voltage - Load [Max]250 V250 V
Voltage - Load [Min]12 V12 V

290549 Series

SOLID STATE RELAYS - INDUSTRIAL MOUNT PLC-HPT-24DC/220DC/10

PartVoltage - Load [Max]Voltage - Load [Min]Output TypeApproval AgencyMounting TypeTermination StyleLoad CurrentOperating Temperature [Min]Operating Temperature [Max]Package / CaseVoltage - Input [Min]Voltage - Input [Max]Voltage - Input
Phoenix Contact
2905494
250 V
12 V
DC
IEC
DIN Rail
Screw Terminal
10 A
-25 °C
60 °C
Module
19.2 V
28.8 V
Phoenix Contact
2905495
250 V
12 V
DC
EN, IEC
DIN Rail
Screw Terminal
10 A
-25 °C
60 °C
Module
19.2 V
28.8 V
Phoenix Contact
2905491
DC
GOST
Socketable
Plug In
5 A
-20 C
60 °C
Module
24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 89.74
10$ 82.56
50$ 76.28
100$ 72.69
LCSCPiece 1$ 71.47
200$ 28.52
500$ 27.56
1000$ 27.09
SagerN/A 1$ 92.53
10$ 82.61

Description

General part information

290549 Series

Solid State SPST-NO (1 Form A) Module

Documents

Technical documentation and resources

Datasheet

Datasheet
