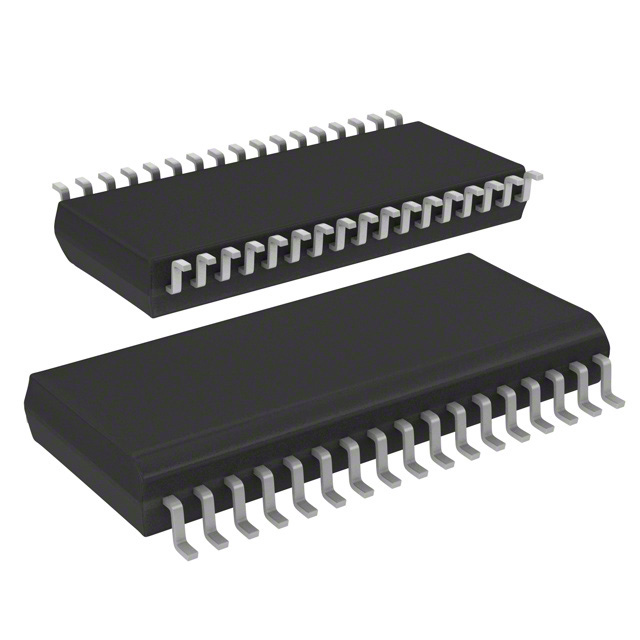

AN44067A-VF

Obsolete

Panasonic Industrial Automation Sales

IC MTR DRV BIPOLAR 10-34V 34HSOP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC MTR DRV BIPOLAR 10-34V 34HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	AN44067A-VF

Applications	General Purpose
Current - Output	2.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	34-TSOP Exposed Pad
Step Resolution	1/8, 1, 1/16, 1/32, 1/2
Supplier Device Package	34-HSOP
Technology	Power MOSFET
Voltage - Load [Max]	34 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	34 VDC
Voltage - Supply [Min]	10 VDC

Part	Mounting Type	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Step Resolution	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Applications	Current - Output	Supplier Device Package	Package / Case	Interface	Motor Type - Stepper
Panasonic Industrial Automation Sales AN44067A-VF	Surface Mount	Driver - Fully Integrated Control and Power Stage	34 VDC	10 VDC	1 1/16 1/2 1/32 1/8	Half Bridge (4)	-20 °C	120 °C	Power MOSFET	34 V	10 V	General Purpose	2.5 A	34-HSOP	34-TSOP Exposed Pad	Parallel	Bipolar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver Power MOSFET Parallel 34-HSOP
