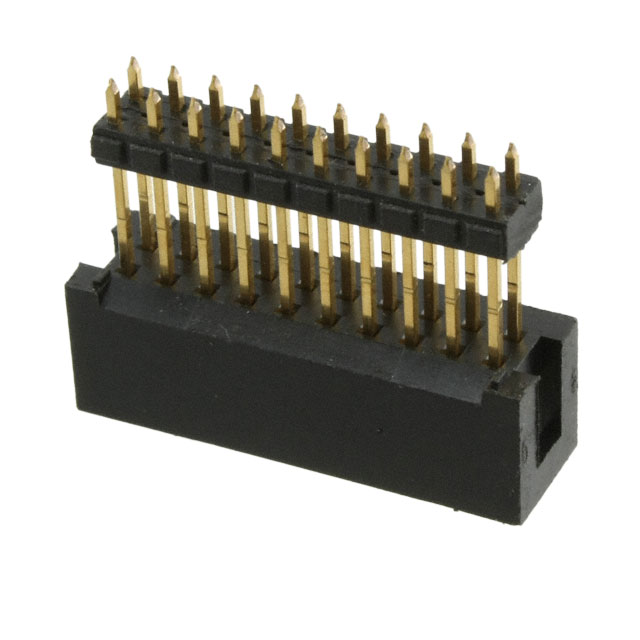

924327-28-10-I

Obsolete

3M (TC)

CONN HDR 20POS 0.1 STACK T/H

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN HDR 20POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	924327-28-10-I

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	21.844 mm
Length - Overall Pin	0.86 in
Length - Post (Mating) [x]	5.537 mm
Length - Post (Mating) [x]	0.218 in
Length - Stack Height [x]	0.5 in
Length - Stack Height [x]	12.7 mm
Length - Tail	2.8 mm
Length - Tail	0.11 in
Mounting Type	Through Hole
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Number of Positions	Color	Termination	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Mounting Type	Length - Tail	Length - Tail	Length - Overall Pin	Length - Overall Pin	Length - Overall Pin [x]	Length - Overall Pin [x]
3M (TC) 924327-28-10-I	0.5 in	12.7 mm	2	20	Black	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	5.537 mm	0.218 in	0.25 Ám	10 Áin	Gold	Through Hole	2.8 mm	0.11 in	21.844 mm	0.86 in
3M (TC) 924327-24-20-EU	0.38 in	9.652 mm	2	40	Black	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	5.334 mm	0.21 in	0.25 Ám	10 Áin	Gold	Through Hole	2.8 mm	0.11 in			0.74 in	18.8 mm
