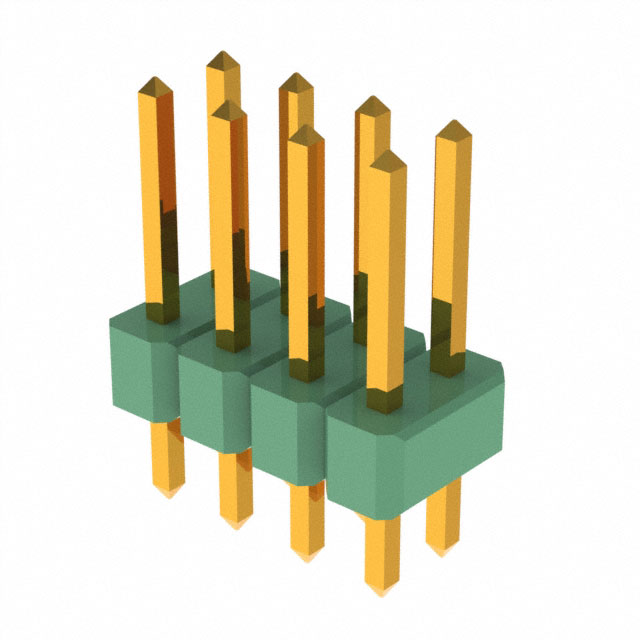

AMC04DAAN
UnknownSullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
AMC04DAAN
UnknownSullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMC04DAAN |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Green |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 0.45 " |
| Overall Contact Length | 11.43 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
AMC04 Series
| Part | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Material Flammability Rating | Insulation Color | Contact Shape | Contact Finish - Post | Shrouding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Fastening Type | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Number of Rows | Termination | Contact Length - Mating [x] | Contact Length - Mating | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Contact Type | Number of Positions Loaded | Connector Type | Style | Read Out | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Finish | Pitch [x] | Pitch [x] | Gender | Material - Insulation | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | 3 A | UL94 V-0 | Green | Square | Gold | Unshrouded | Beryllium Copper | -65 ░C | 200 °C | 10 çin | 0.25 çm | Polyphenylene Sulfide (PPS) | Push-Pull | Gold | 0.45 " | 11.43 mm | 2.54 mm | 0.1 in | 8 | 2 | Solder | 0.23 in | 5.84 mm | 0.1 in | 2.54 mm | 0.12 in | 3.05 mm | Through Hole | Male Pin | All | Breakaway Header | Board to Board Cable | |||||||||||
Sullins Connector Solutions | Beryllium Copper | -65 ░C | 200 °C | 8 | 2 | Solder | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 0.76 Ám | 30 Áin | 4 | Gold | 2.54 mm | 0.1 in | Male | Polyphenylene Sulfide (PPS) | Fits Female Edgecards | ||||||||||||||||||||||||||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | 3 A | UL94 V-0 | Green | Square | Gold | Unshrouded | Beryllium Copper | -65 ░C | 200 °C | 10 çin | 0.25 çm | Polyphenylene Sulfide (PPS) | Push-Pull | Gold | 0.45 " | 11.43 mm | 4 | 1 | Solder | 0.23 in | 5.84 mm | 0.1 in | 2.54 mm | 0.12 in | 3.05 mm | Through Hole | Male Pin | All | Breakaway Header | Board to Board Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMC04 Series
Connector Header Through Hole 8 position 0.100" (2.54mm)
