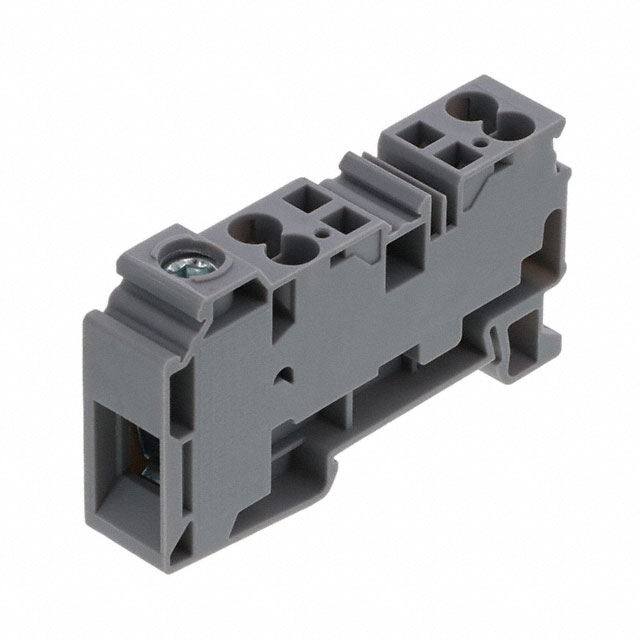

CXDB35/10A
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK DIST 2-14AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CXDB35/10A
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK DIST 2-14AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CXDB35/10A |
|---|---|
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size [Max] | 14 AWG |
| Line Side Wire/Stud Size [Min] | 2 AWG |
| Load Side Connection Type | Push In |
| Load Side Connections Per Pole | 4 |
| Load Side Wire/Stud Size [Max] | 24 AWG |
| Load Side Wire/Stud Size [Min] | 8 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.65 | |
| 20 | $ 11.13 | |||
| 100 | $ 9.80 | |||
| 1000 | $ 7.90 | |||
Description
General part information
CXDB35 Series
1 Pole Power Distribution Block 600 V
