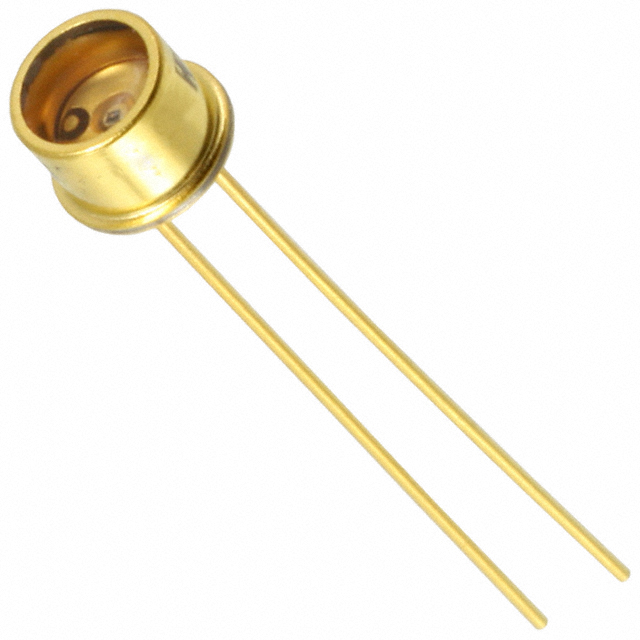

OD-850W
ActiveOpto Diode Corp
EMITTER IR 850NM 100MA TO-46
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OD-850W
ActiveOpto Diode Corp
EMITTER IR 850NM 100MA TO-46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OD-850W | OD-850 Series |
|---|---|---|
| Configuration | - | Square |
| Current - DC Forward (If) (Max) [Max] | 100 mA | 100 mA |
| Current - Max | - | 6 A |
| Current - Test | - | 3 A |
| Height | - | 8.13 mm |
| Lens Type | - | Flat |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 100 °C | 100 - 150 °C |
| Operating Temperature [Min] | -40 °C | -65 - -40 °C |
| Orientation | Top View | Top View |
| Package / Case | TO-46-2 Lens Top Metal Can | TO-46-2 Lens Top Metal Can |
| Size / Dimension | - | 50 mm |
| Size / Dimension | - | 50 mm |
| Type | Infrared (IR) | Infrared (IR), LED Module |
| Viewing Angle | 80 ° | 8 - 160 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V | 1.6 - 13 V |
| Wavelength | 850 nm | 850 nm |
OD-850 Series
EMITTER IR 850NM 100MA TO-46
| Part | Wavelength | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Viewing Angle | Voltage - Forward (Vf) (Typ) | Mounting Type | Package / Case | Type | Current - DC Forward (If) (Max) [Max] | Current - Max [Max] | Configuration | Lens Type | Current - Test | Height [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Opto Diode Corp OD-850LHT | 850 nm | -65 °C | 150 °C | Top View | 70 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850L | 850 nm | -40 °C | 100 °C | Top View | 35 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850FHT | 850 nm | -65 °C | 150 °C | Top View | 16 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850W | 850 nm | -40 °C | 100 °C | Top View | 80 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850F | 850 nm | -40 °C | 100 °C | Top View | 8 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850WHT | 850 nm | -65 °C | 150 °C | Top View | 160 ° | 1.6 V | Through Hole | TO-46-2 Lens Top Metal Can | Infrared (IR) | 100 mA | |||||||
Opto Diode Corp OD-850-30-030 | 30 ° | 13 V | LED Module | 6 A | Square | Flat | 3 A | 8.13 mm | 50 mm | 50 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.41 | |
| 10 | $ 9.00 | |||
| 100 | $ 7.44 | |||
| 500 | $ 6.51 | |||
| 1000 | $ 6.16 | |||
Description
General part information
OD-850 Series
Infrared (IR) Emitter 850nm 1.6V 100mA 80° TO-46-2 Lens Top Metal Can
