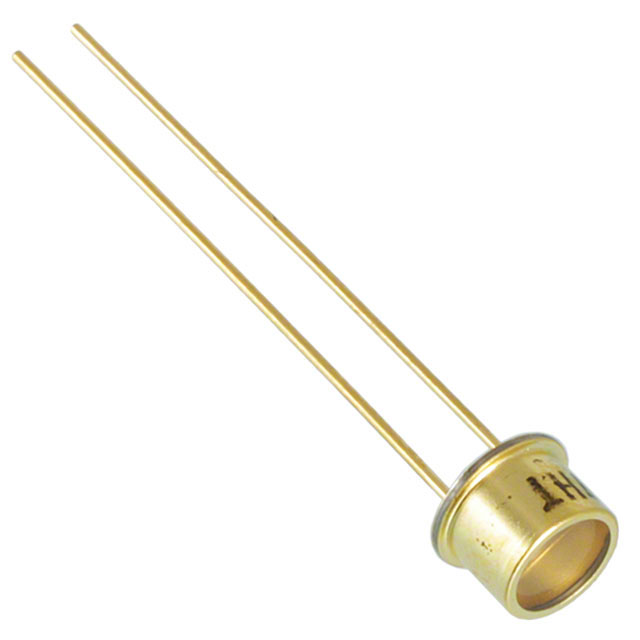

OD-850WHT

Active

Opto Diode Corp

EMITTER IR 850NM 100MA TO-46

Search across all available documentation for this part.

Active

Opto Diode Corp

EMITTER IR 850NM 100MA TO-46

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 1.6V 100mA 160° TO-46-2 Lens Top Metal Can

Technical documentation and resources

Parameters and characteristics commom to parts in this series

EMITTER IR 850NM 100MA TO-46

Part	Wavelength	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Type	Current - DC Forward (If) (Max) [Max]	Current - Max [Max]	Configuration	Lens Type	Current - Test	Height [z]	Size / Dimension [x]	Size / Dimension [y]
Opto Diode Corp OD-850LHT	850 nm	-65 °C	150 °C	Top View	70 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850L	850 nm	-40 °C	100 °C	Top View	35 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850FHT	850 nm	-65 °C	150 °C	Top View	16 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850W	850 nm	-40 °C	100 °C	Top View	80 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850F	850 nm	-40 °C	100 °C	Top View	8 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850WHT	850 nm	-65 °C	150 °C	Top View	160 °	1.6 V	Through Hole	TO-46-2 Lens Top Metal Can	Infrared (IR)	100 mA
Opto Diode Corp OD-850-30-030					30 °	13 V			LED Module		6 A	Square	Flat	3 A	8.13 mm	50 mm	50 mm
