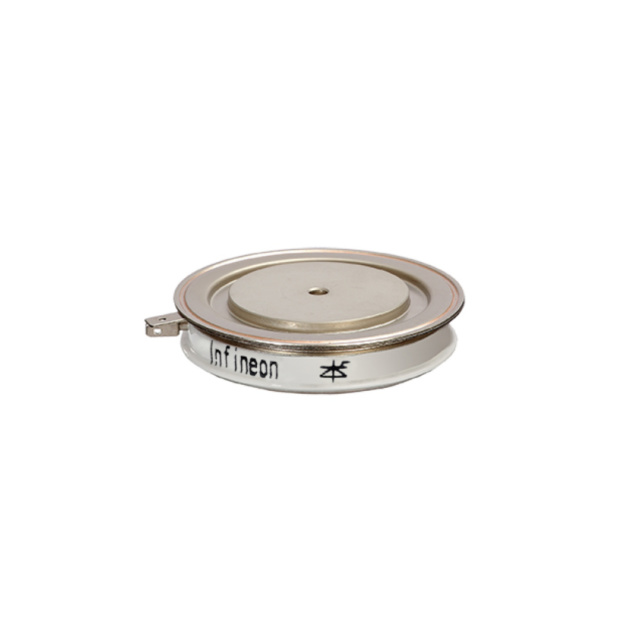

T420N18TOFXPSA1

Obsolete

Infineon Technologies

SCR MODULE 1800V 750A DO200AA

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 1800V 750A DO200AA

Technical Specifications

Parameters and characteristics for this part

Specification	T420N18TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	200 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	7200 A
Current - On State (It (AV)) (Max)	424 A
Current - On State (It (RMS)) (Max)	750 A
Mounting Type	Clamp On
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	DO-200AA, A-PUK
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Package / Case	Mounting Type	Current - On State (It (AV)) (Max)	Structure	Current - Hold (Ih) (Max) [Max]
Infineon Technologies T420N18TOFXPSA1	200 mA	1 SCR	7200 A	750 A	125 °C	-40 °C	2 V	1.8 kV	A-PUK DO-200AA	Clamp On	424 A	Single	300 mA
