EM15TF-012-1

Active

FLUX FIELD DIRECTIONAL MATERIALS EM15TF-012-1

Search across all available documentation for this part.

Active

FLUX FIELD DIRECTIONAL MATERIALS EM15TF-012-1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM15TF-012-1	EM15TF Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive
Length	4.921 in	4.921 in
Length	125 mm	125 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shape	Square	Square
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	70 °F	70 °F
Storage/Refrigeration Temperature	21 °C	21 °C
Thickness - Overall	0.004 in	0.004 in
Thickness - Overall	0.12 mm	0.12 mm
Type	Absorbing/Shielding Sheet	Absorbing/Shielding Sheet
Width [x]	125 mm	125 mm
Width [x]	4.921 "	4.921 "

RF ABSORB/SHD SHEET 4.921X4.921"

Part	Shelf Life Start	Shape	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length	Length	Thickness - Overall	Thickness - Overall	Type	Shelf Life	Width [x]	Width [x]	Adhesive
3M EM15TF-014-1	Date of Manufacture	Square	-30 ░C	85 °C	70 °F	21 °C	4.921 in	125 mm	0.004 in	0.12 mm	Absorbing/Shielding Sheet	12 Months	125 mm	4.921 "	Non-Conductive, Single Sided
3M EM15TF-012-1	Date of Manufacture	Square	-30 ░C	85 °C	70 °F	21 °C	4.921 in	125 mm	0.004 in	0.12 mm	Absorbing/Shielding Sheet	12 Months	125 mm	4.921 "	Non-Conductive, Single Sided

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

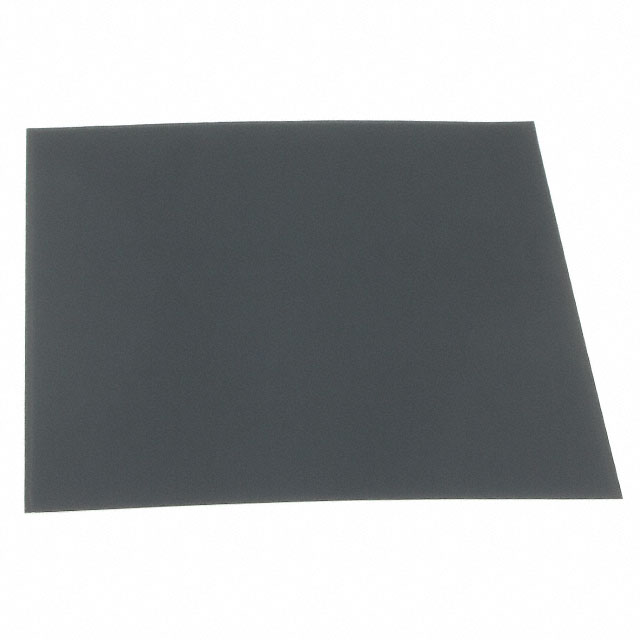

RF EMI Absorbing/Shielding Sheet EM15TF Non-Conductive, Single Sided 4.921" (125.00mm) X 4.921" (125.00mm) X 0.004" (0.12mm)

Technical documentation and resources

No documents available
