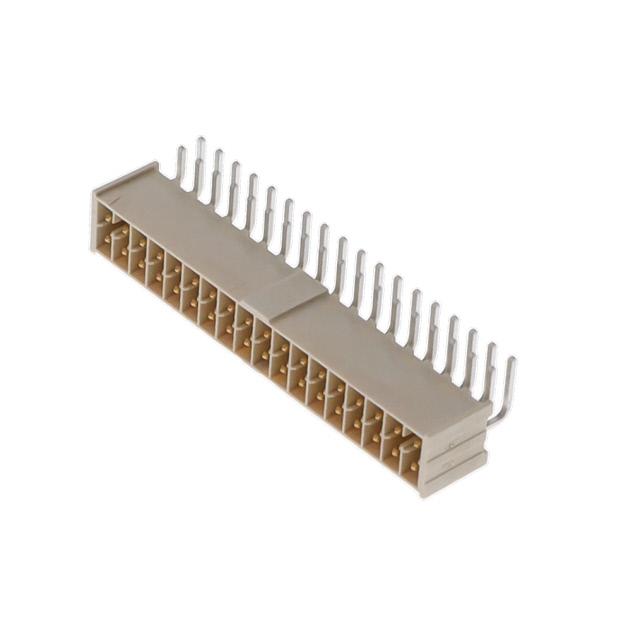

IPL1-118-01-L-D-RA-K
ActiveSamtec Inc.
CONN HEADER R/A 36POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
IPL1-118-01-L-D-RA-K
ActiveSamtec Inc.
CONN HEADER R/A 36POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPL1-118-01-L-D-RA-K |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 5.46 mm |
| Contact Length - Mating | 0.215 in |
| Contact Length - Post | 2.16 mm |
| Contact Length - Post | 0.085 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 7.37 mm |
| Insulation Height | 0.29 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 954 VDC, 675 VAC |
IPL1-118 Series
| Part | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Number of Positions | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Fastening Type | Mounting Type | Number of Rows | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Voltage Rating | Insulation Height | Insulation Height | Contact Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Material | Style | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Gold | 10 çin | 0.25 çm | Square | 36 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Surface Mount | 2 | Header | 2.54 mm | 0.1 in | Phosphor Bronze | 675 VAC 954 VDC | 8.13 mm | 0.32 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin | ||||||
Samtec Inc. | Gold | 30 Áin | 0.76 Ám | Square | 18 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Through Hole | 1 | Header | Phosphor Bronze | 675 VAC 954 VDC | 8.13 mm | 0.32 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | 0.12 in | 3.05 mm | ||||
Samtec Inc. | Gold | 10 çin | 0.25 çm | Square | 36 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Through Hole Right Angle | 2 | Header | 2.54 mm | 0.1 in | Phosphor Bronze | 675 VAC 954 VDC | 8.25 mm | 0.325 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin | 2.16 mm | 0.085 in | ||||
Samtec Inc. | Gold | 10 çin | 0.25 çm | Square | 36 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Through Hole Right Angle | 2 | Header | 2.54 mm | 0.1 in | Phosphor Bronze | 675 VAC 954 VDC | 7.37 mm | 0.29 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin | 2.16 mm | 0.085 in | ||||
Samtec Inc. | Gold | 3 µin | 0.076 µm | Square | 18 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Through Hole Right Angle | 1 | Header | Phosphor Bronze | 675 VAC 954 VDC | 6.1 mm | 0.24 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin | 2.16 mm | 0.085 in | ||||||
Samtec Inc. | Gold | 3 µin | 0.076 µm | Square | 36 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Through Hole | 2 | Header | 2.54 mm | 0.1 in | Phosphor Bronze | 675 VAC 954 VDC | 8.13 mm | 0.32 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin | 0.12 in | 3.05 mm | ||||
Samtec Inc. | Gold | 30 Áin | 0.76 Ám | Square | 36 | 5.46 mm | 0.215 in | UL94 V-0 | Natural | All | Locking Ramp | Surface Mount | 2 | Header | 2.54 mm | 0.1 in | Phosphor Bronze | 675 VAC 954 VDC | 8.13 mm | 0.32 in | Male Pin | Solder | -55 °C | 125 °C | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | 0.1 in | 2.54 mm | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.77 | |
| 10 | $ 5.14 | |||
| 25 | $ 4.74 | |||
| 50 | $ 4.17 | |||
| 100 | $ 3.70 | |||
Description
General part information
IPL1-118 Series
Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm)
