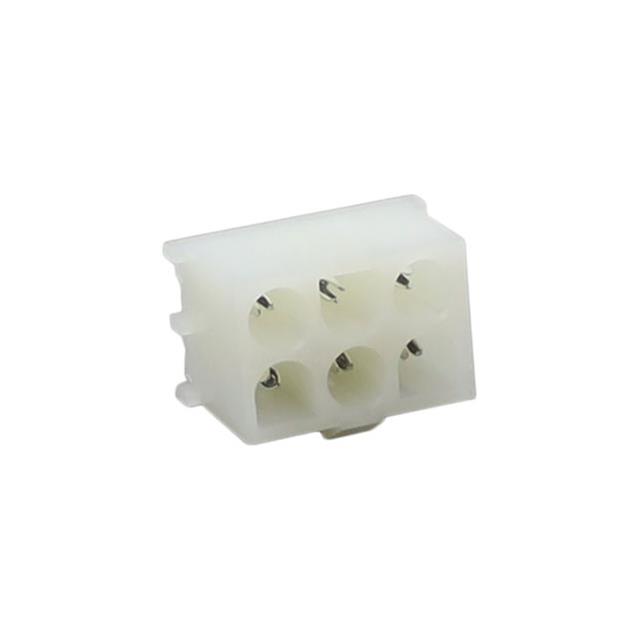

DME-06-S2-SQ
ActiveAdam Tech
PCB MOUNT PIN HEADER (W/OUT POLA
Deep-Dive with AI
Search across all available documentation for this part.
DME-06-S2-SQ
ActiveAdam Tech
PCB MOUNT PIN HEADER (W/OUT POLA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DME-06-S2-SQ |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157 in |
| Contact Length - Post | 4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 9 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.581 in |
| Insulation Height | 14.76 mm, 14.75 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 6.35 mm |
| Pitch - Mating | 0.25 in |
| Row Spacing - Mating | 0.25 in |
| Row Spacing - Mating | 6.35 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
DME-06 Series
| Part | Features | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Connector Type | Number of Rows | Fastening Type | Contact Type | Material Flammability Rating | Current Rating (Amps) | Insulation Color | Applications | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Length - Post | Contact Length - Post | Mounting Type | Insulation Material | Style | Contact Material | Contact Finish - Post | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Board Guide | 6 | 0.25 in | 6.35 mm | All | 0.55 in | 13.97 mm | Receptacle | 3 | Locking Ramp | Female Socket | UL94 V-0 | 13 A | Natural | General Purpose | Solder | 105 ░C | -55 °C | Circular | 6.35 mm | 0.25 in | 600 VAC | 0.177 in | 4.5 mm | Through Hole | Polyamide (PA66) Nylon 6/6 | ||||
Adam Tech | 6 | 0.25 in | 6.35 mm | All | 0.581 in | 14.75 mm 14.76 mm | Header | 3 | Locking Ramp | Male Pin | UL94 V-2 | 9 A | Natural | Solder | 105 ░C | -40 °C | Circular | 6.35 mm | 0.25 in | 0.157 in | 4 mm | Through Hole | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Phosphor Bronze | Tin | Shrouded - 4 Wall |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.17 | |
| 10 | $ 1.84 | |||
| 100 | $ 1.57 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.33 | |||
| 5000 | $ 1.19 | |||
Description
General part information
DME-06 Series
Connector Header Through Hole 6 position 0.250" (6.35mm)
