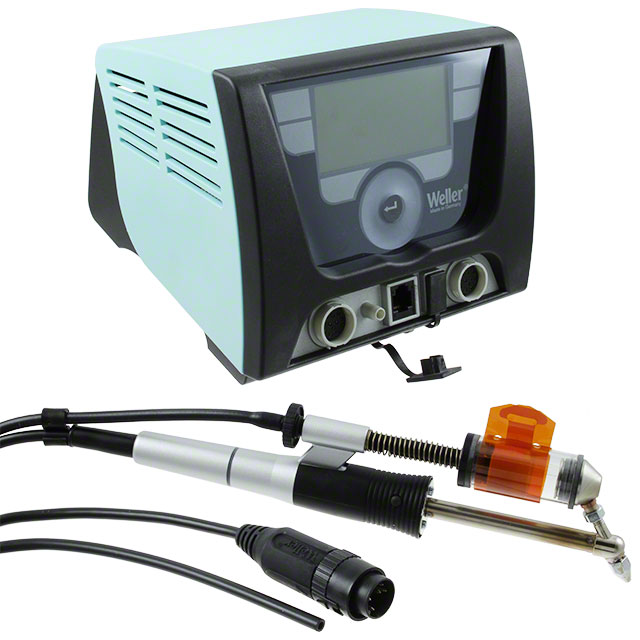

WXD2010N

Active

Apex Tool Group

DESOLDER STATION 200W 2 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

DESOLDER STATION 200W 2 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WXD2010N

Control/Display Type	Digital
Features	LCD Display, Auto Off, Vacuum, USB Port
Includes	Iron Holder, Pliers
Number of Channels [custom]	2
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	WXDP120
Supplied Tips/Nozzles	Sold Separately
Temperature Range [Max]	450 °C
Temperature Range [Max]	850 °F
Temperature Range [Min]	100 °C
Temperature Range [Min]	200 °F
Tip Cleaner	Scouring Pad
Type	Desoldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	200 W
Workstand	WDH70

DESOLDER STATION 200W 2 CH 120V

Part	Plug Type	Voltage - Input	Tip Cleaner	Workstand	Wattage	Supplied Tips/Nozzles	Type	Supplied Iron, Tweezer, Handle	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Number of Channels [custom]	Control/Display Type	Voltage - Output	Includes	Features
Apex Tool Group WXD2010N	NEMA 5-15	120 V	Scouring Pad	WDH70	200 W	Sold Separately	Desoldering	WXDP120	100 °C	200 °F	450 °C	850 °F	2	Digital	24 V	Iron Holder, Pliers	Auto Off, LCD Display, USB Port, Vacuum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1720.00

General part information

DESOLDER STATION 200W 2 CH 120V

Technical documentation and resources
