7-1103636-1
ActiveTE Connectivity AMP Connectors

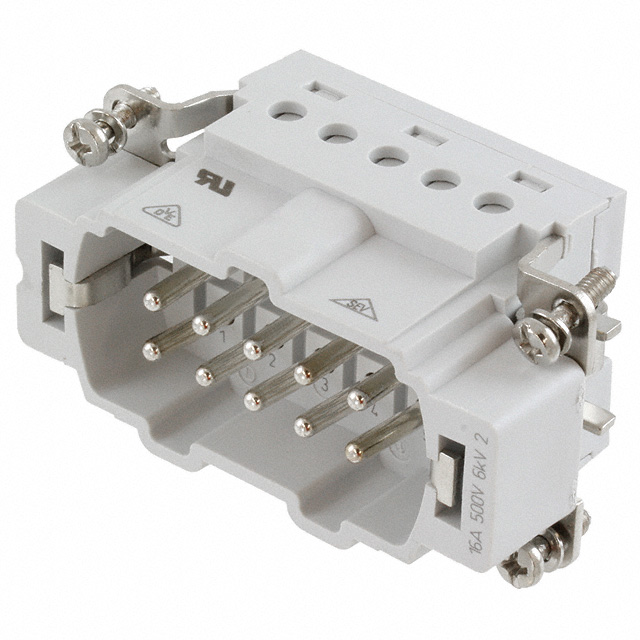

INSERT MALE 10POS+1GND CLAMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1103636-1
ActiveTE Connectivity AMP Connectors
INSERT MALE 10POS+1GND CLAMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-1103636-1 | 1103636 Series |
|---|---|---|
| Color | Gray | Gray |
| Contact Finish | Silver | Silver |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Male | Male |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 10+Ground | 10+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 4 | 4 |
| Termination Style | Tension Clamp | Tension Clamp, Screw |
| Voltage Rating | 400 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103636 Series
INSERT MALE 10POS+1GND CLAMP
| Part | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Termination Style | Gender | Size | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-1103636-1 | 16 A | 400 V | UL94 V-0 | 125 °C | -40 °C | Silver | Gray | Tension Clamp | Male | 4 | Brass | 10+Ground |
TE Connectivity AMP Connectors 1-1103636-1 | 16 A | 400 V | UL94 V-0 | 125 °C | -40 °C | Silver | Gray | Screw | Male | 4 | Brass | 10+Ground |
Description
General part information
1103636 Series
Male Insert Gray 10+Ground Position Tension Clamp
