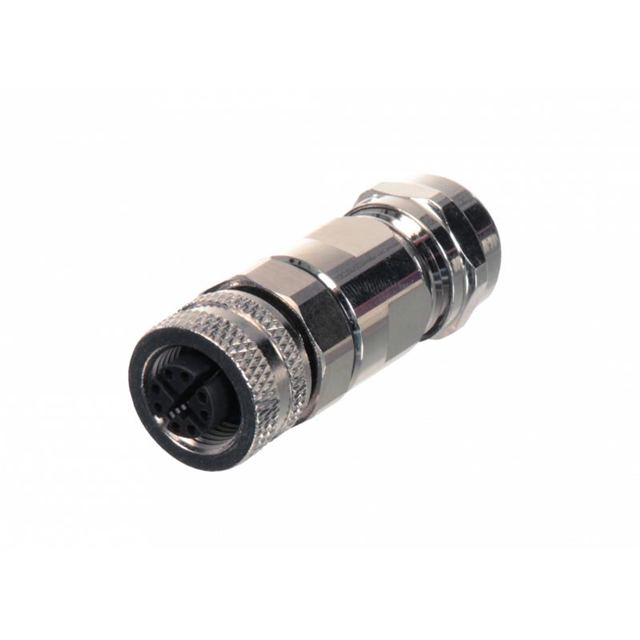

Specification	A-M12-05-FGMA-GHB1A

Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.236 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Material	Phosphor Copper
Current Rating	4 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Insert Material	Glass Filled, Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	60 V
Voltage Rating (Type)	DC

A-M12 Series

...

Part	Primary Material	Features	Shell Size - Insert	Shielding	Insert Material	Fastening Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Material	Backshell Material, Plating	Color	Termination	Number of Positions	Current Rating	Orientation	Shell Material	Shell Finish	Contact Finish Thickness - Mating	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating	Voltage Rating (Type)	Cable Opening (Min)	Cable Opening (Max)	Contact Finish - Mating	Mounting Feature	Backshell Material	Plating
Assmann WSW Components A-M12-04-FAPA-GEB1A	Metal	Backshell Coupling Nut	M12-4	Unshielded	Glass Filled Nylon 6/6 PA66 Polyamide	Threaded	Free Hanging (In-Line) Right Angle	85 °C	-25 °C	UL94 V-0	Phosphor Bronze	Glass Filled Nylon 6/6 Polyamide (PA66)	Black Silver	Screw	4	4 A	A	Brass	Nickel	1 µin	Female Sockets Plug	Dust Tight Waterproof	IP67 IP68	250 V	DC	0.236 in	0.315 in	Gold
Assmann WSW Components A-M12-03-MGMA-GHB1A	Metal	Backshell	M12-3	Shielded	Glass Filled Nylon 6/6 PA66 Polyamide	Threaded	Free Hanging (In-Line)	85 °C	-25 °C	UL94 V-0	Phosphor Copper		Silver	Solder Cup	3	4 A	A	Brass	Nickel	1 µin	Male Pins Receptacle	Dust Tight Waterproof	IP67 IP68	250 V	DC	0.236 in	0.315 in	Gold
Assmann WSW Components A-M12-08-MAPA-GEB1A	Metal	Backshell	M12-8	Unshielded	Glass Filled Nylon 6/6 PA66 Polyamide	Threaded	Free Hanging (In-Line) Right Angle	85 °C	-25 °C	UL94 V-0	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Black Silver	Screw	8	2 A	A	Brass	Nickel	1 µin	Male Pins Receptacle	Dust Tight Waterproof	IP67 IP68	30 V	AC DC	0.236 in	0.315 in	Gold
Assmann WSW Components A-M12-05-MGMB-GTB1A	Metal		M12-5	Unshielded	Epoxy Plastic	Threaded	Panel Mount Through Hole	100 °C	-25 °C	UL94 V-0			Silver	Solder	5	4 A	B	Brass	Nickel	1 µin	Male Pins Receptacle	Dust Tight Waterproof	IP67 IP68	60 V	DC			Gold	Bulkhead Front Side Nut
Assmann WSW Components A-M12-05-MGMB-GHB2	Metal		M12-5	Unshielded	Epoxy Plastic	Threaded	Panel Mount	85 °C	-25 °C	UL94 V-0			Silver	Solder Cup	5	4 A	B	Brass	Nickel	1 µin	Male Pins Receptacle	Dust Tight Waterproof	IP67 IP68	60 V	DC			Gold	Bulkhead Rear Side Nut
Assmann WSW Components A-M12-03-FGMA-GHB3A	Metal		M12-3	Unshielded	Epoxy Plastic	Threaded	Panel Mount	85 °C	-25 °C	UL94 V-0			Silver	Solder Cup	3	4 A	A	Brass	Nickel	1 µin	Female Sockets Receptacle	Dust Tight Waterproof	IP67 IP68	250 V	DC			Gold	Bulkhead Front Side Nut
Assmann WSW Components A-M12-04-FGMD-GTB2	Metal		M12-4	Unshielded	Epoxy Plastic	Threaded	Panel Mount Through Hole	85 °C	-25 °C	UL94 V-0			Silver	Solder	4	4 A	D	Brass	Nickel	1 µin	Female Sockets Receptacle	Dust Tight Waterproof	IP67 IP68	250 V	DC			Gold	Bulkhead Rear Side Nut
Assmann WSW Components A-M12-08-MAMA-GTB1	Metal	Board Guide Board Lock	M12-8	Unshielded	Epoxy Plastic	Threaded	Panel Mount Right Angle Through Hole	85 °C	-25 °C	UL94 V-0			Silver	Solder	8	2 A	A	Brass	Nickel	1 µin	Male Pins Receptacle	Dust Tight Waterproof	IP67 IP68	30 V	AC DC			Gold	Bulkhead Front Side Nut
Assmann WSW Components A-M12-08-FGMA-GEB1A	Metal	Backshell Coupling Nut	M12-8	Shielded	Glass Filled Nylon 6/6 PA66 Polyamide	Threaded	Free Hanging (In-Line)	85 °C	-25 °C	UL94 V-0	Phosphor Bronze		Silver	Screw	8	2 A	A	Copper Zinc	Nickel	1 µin	Female Sockets Plug	Dust Tight Waterproof	IP67 IP68	30 V	AC DC	0.236 in	0.315 in	Gold		Copper Zinc	Nickel
Assmann WSW Components A-M12-03-FGPA-GHB1	Plastic	Backshell Coupling Nut	M12-3	Unshielded	Glass Filled Nylon 6/6 PA66 Polyamide	Threaded	Free Hanging (In-Line)	85 °C	-20 °C	UL94 V-0	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Solder Cup	3	4 A	A	Glass Filled Nylon 6/6 Polyamide (PA66)		1 µin	Female Sockets Plug	Dust Tight Waterproof	IP67 IP68	250 V	DC	0.157 in	0.236 in	Gold
