A-M12-05-MGMB-GHB2

Active

Assmann WSW Components

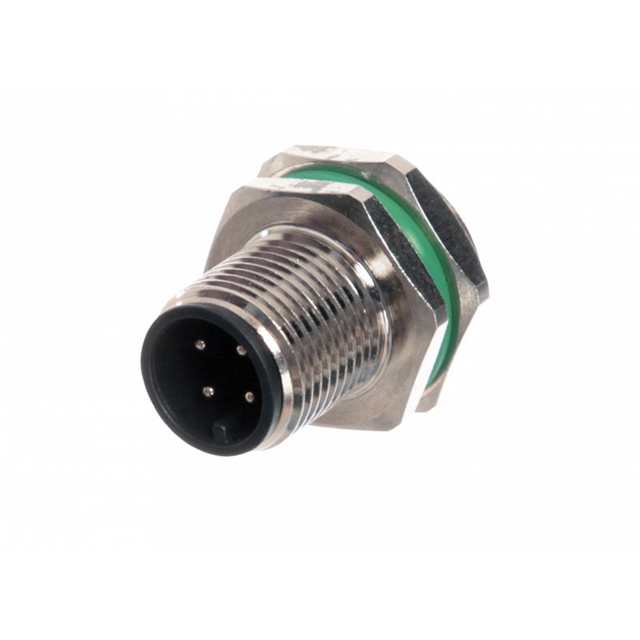

CONN PLUG MALE 5POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-M12-05-MGMB-GHB2

Active

Assmann WSW Components

CONN PLUG MALE 5POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-M12-05-MGMB-GHB2

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Current Rating (Amps)	4 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Epoxy, Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VAC

A-M12 Series

Part	Primary Material	Contact Finish - Mating	Shielding	Orientation	Mounting Type	Shell Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Size - Insert	Color	Material Flammability Rating	Voltage Rating	Connector Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Insert Material	Contact Material	Ingress Protection	Features	Termination	Backshell Material, Plating	Number of Positions	Mounting Feature	Operating Temperature [custom]	Cable Opening [diameter]	Cable Opening [diameter]
Assmann WSW Components A-M12-03-MGMA-GHB1A	Metal	Gold	Shielded	A	Free Hanging (In-Line)	Brass	4 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-3	Silver	UL94 V-0	250 VAC	Male Pins Receptacle	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Phosphor Copper	IP67/IP68 - Dust Tight Waterproof	Backshell
Assmann WSW Components A-M12-08-MAPA-GEB1A	Metal	Gold	Unshielded	A	Free Hanging (In-Line) Right Angle	Brass	2 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-8	Black Silver	UL94 V-0	30 VAC	Male Pins Receptacle	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Brass	IP67/IP68 - Dust Tight Waterproof	Backshell	Screw	Glass Filled Nylon 6/6 Polyamide (PA66)	8
Assmann WSW Components A-M12-05-MGMB-GTB1A	Metal	Gold	Unshielded	B	Panel Mount Through Hole	Brass	4 A	1 µin	0.025 µm			Nickel	M12-5	Silver	UL94 V-0	60 VAC	Male Pins Receptacle					Epoxy Plastic		IP67/IP68 - Dust Tight Waterproof		Solder			Bulkhead - Front Side Nut	-25 °C 100 °C
Assmann WSW Components A-M12-05-MGMB-GHB2	Metal	Gold	Unshielded	B		Brass	4 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-5	Silver	UL94 V-0	60 VAC	Male Pins Receptacle					Epoxy Plastic		IP67/IP68 - Dust Tight Waterproof					Bulkhead - Rear Side Nut
Assmann WSW Components A-M12-03-FGMA-GHB3A	Metal	Gold	Unshielded	A		Brass	4 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-3	Silver	UL94 V-0	250 VAC	Receptacle Female Sockets					Epoxy Plastic		IP67/IP68 - Dust Tight Waterproof					Bulkhead - Front Side Nut
Assmann WSW Components A-M12-04-FGMD-GTB2	Metal	Gold	Unshielded	D	Panel Mount Through Hole	Brass	4 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-4	Silver	UL94 V-0	250 VAC	Receptacle Female Sockets					Epoxy Plastic		IP67/IP68 - Dust Tight Waterproof		Solder		4	Bulkhead - Rear Side Nut
Assmann WSW Components A-M12-08-MAMA-GTB1	Metal	Gold	Unshielded	A	Panel Mount Right Angle Through Hole	Brass	2 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-8	Silver	UL94 V-0	30 VAC	Male Pins Receptacle					Epoxy Plastic		IP67/IP68 - Dust Tight Waterproof	Board Guide Board Lock	Solder		8	Bulkhead - Front Side Nut
Assmann WSW Components A-M12-08-FGMA-GEB1A	Metal	Gold	Shielded	A	Free Hanging (In-Line)	Copper Zinc	2 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-8	Silver	UL94 V-0	30 VAC	Female Sockets Plug	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Phosphor Bronze	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Screw	Copper Zinc Nickel	8
Assmann WSW Components A-M12-03-FGPA-GHB1	Plastic	Gold	Unshielded	A	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6 Glass Filled	4 A	1 µin	0.025 µm	-20 C	85 °C		M12-3	Black	UL94 V-0	250 VAC	Female Sockets Plug					Glass Filled Nylon 6/6 Polyamide (PA66)	Brass	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut		Glass Filled Nylon 6/6 Polyamide (PA66)				4 mm 6 mm	0.157 in 0.236 in
Assmann WSW Components A-M12-05-FGMA-GEB1A	Metal	Gold	Shielded	A	Free Hanging (In-Line)	Copper Zinc	4 A	1 µin	0.025 µm	-25 °C	85 °C	Nickel	M12-5	Silver	UL94 V-0	60 VAC	Female Sockets Plug	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Phosphor Bronze	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Screw	Copper Zinc Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 12.03

Description

General part information

A-M12 Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
