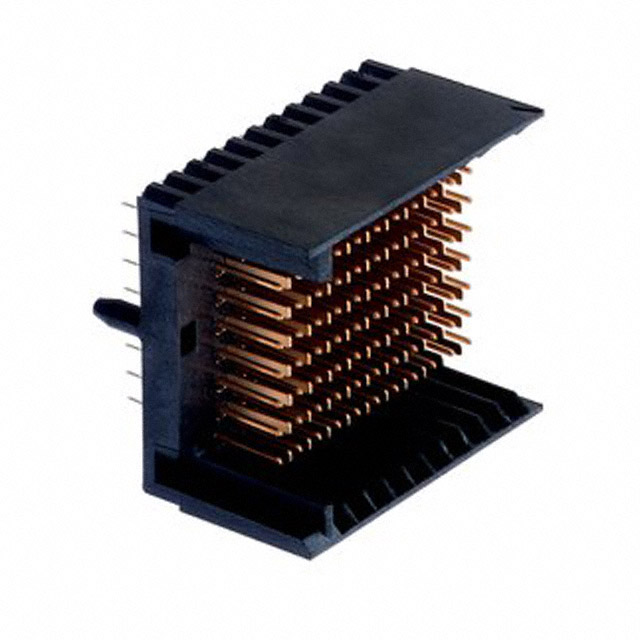

HSHM-H088FR5-8CP1-TG30

Active

CONN HEADER 88POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

CONN HEADER 88POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN HEADER 88POS 2MM PRESS-FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Features	Number of Positions Loaded	Connector Type	Number of Rows	Connector Usage	Current Rating (Amps)	Connector Style	Mounting Type	Termination	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
3M HSHM-H088FR5-8CP1-TG30	-55 °C	125 °C	Gold	Board Guide, Shielded	All	Header, Male Pins	8	Backplane	1 A	FR 11	Through Hole	Press-Fit	88	0.079 in	2 mm	0.76 Ám	30 Áin
3M HSHM-H088FR4-8CP1-TG30	-55 °C	125 °C	Gold	Board Guide, Shielded	All	Header, Male Pins	8	Backplane	1 A	FR 11	Through Hole	Press-Fit	88	0.079 in	2 mm	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

88 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
