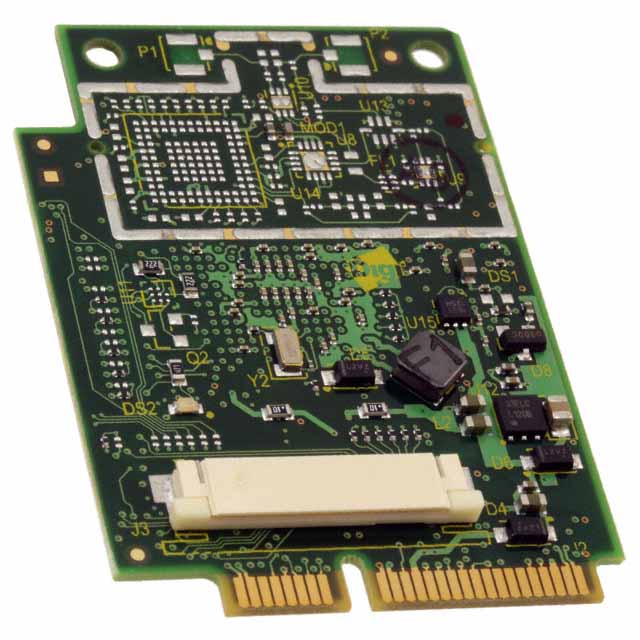

CC-MX-PF47-ZK

Digi

RF TXRX MOD ISM<1GHZ CARD EDGE

Search across all available documentation for this part.

Documentsi.MX28

Digi

RF TXRX MOD ISM<1GHZ CARD EDGE

Documentsi.MX28

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 120.18

General part information

General ISM < 1GHz Transceiver Module 454MHz Card Edge

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF TXRX MOD ISM<1GHZ CARD EDGE

Part	Mounting Type	Frequency	RF Family/Standard	Serial Interfaces	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Memory Size [custom]	Memory Size [custom]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Core Processor	Flash Size	Module/Board Type	Speed	Connector Type	RAM Size
Digi CC-MX-PF47-ZK	Card Edge	454 MHz	General ISM < 1GHz	Ethernet, I2C, I2S, SPI, UART, USB	100 mA	85 °C	-40 °C	406 mA	128 MB	128 MB	Module
Digi CC-MX-PF47-ZM						85 °C	-40 °C					1.38 "	2.01 in	51 mm	35 mm	ARM926EJ-S i.mx287	128 MB	MPU Core	454 MHz	Edge Connector - 52	128 MB
