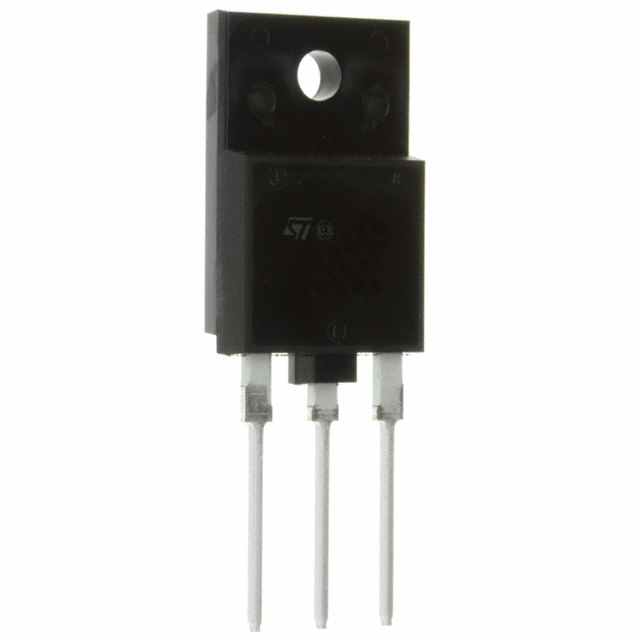

ST8812FX

Obsolete

STMicroelectronics

TRANS NPN 600V 7A ISOWATT-218FX

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 600V 7A ISOWATT-218FX

Technical Specifications

Parameters and characteristics for this part

Specification	ST8812FX

Current - Collector (Ic) (Max) [Max]	7 A
Current - Collector Cutoff (Max) [Max]	1 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	4.5
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	ISOWATT218FX
Power - Max [Max]	50 W
Supplier Device Package	ISOWATT-218FX
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature	Supplier Device Package	Transistor Type	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic
STMicroelectronics ST8812FX	4.5	150 °C	ISOWATT-218FX	NPN	1 mA	7 A	Through Hole	ISOWATT218FX	50 W	600 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 600 V 7 A 50 W Through Hole ISOWATT-218FX
