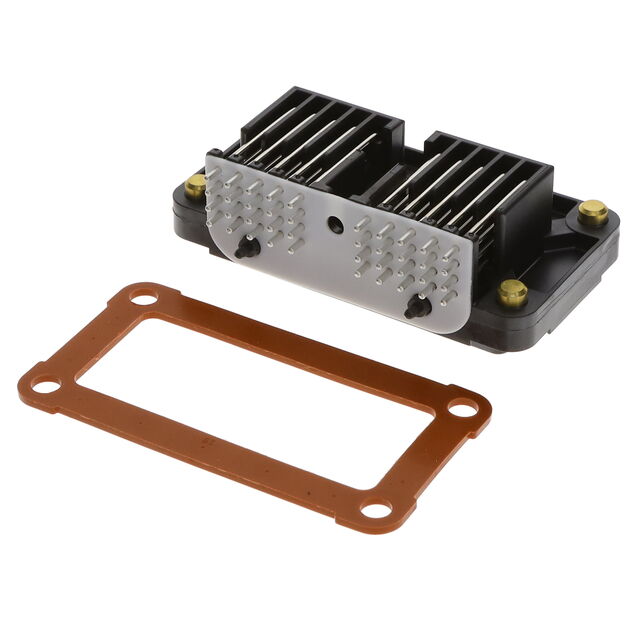

DRC13-40PA

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Technical Specifications

Parameters and characteristics for this part

Specification	DRC13-40PA

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.985 in
Insulation Height	50.42 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	40
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.215 in
Pitch - Mating	5.45 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Fastening Type	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Contact Material	Voltage Rating	Material Flammability Rating	Contact Shape	Style	Insulation Color	Features	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)
TE Connectivity Raychem Cable Protection DRC13-40PA	-55 °C	125 °C	13 A	1.985 in	50.42 mm	Solder	Tin	Push-Pull	Receptacle	Panel Mount Right Angle Through Hole	0.215 in	5.45 mm	Shrouded - 4 Wall	Plastic	40	Male Pin	3.2 mm	0.126 in	All	Brass	250 VAC	UL94 V-0	Circular	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection DRC13-24PA	-55 °C	125 °C		1.985 in	50.42 mm	Solder	Tin	Push-Pull	Receptacle	Panel Mount Right Angle Through Hole	0.215 in	5.46 mm	Shrouded - 4 Wall	Plastic	12	Male Pin	3.2 mm	0.126 in	All	Brass	250 VAC	UL94 V-0	Circular	Board to Cable/Wire	Black	Mounting Flange	0.215 in	5.45 mm	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole, Right Angle 40 position 0.215" (5.45mm)
