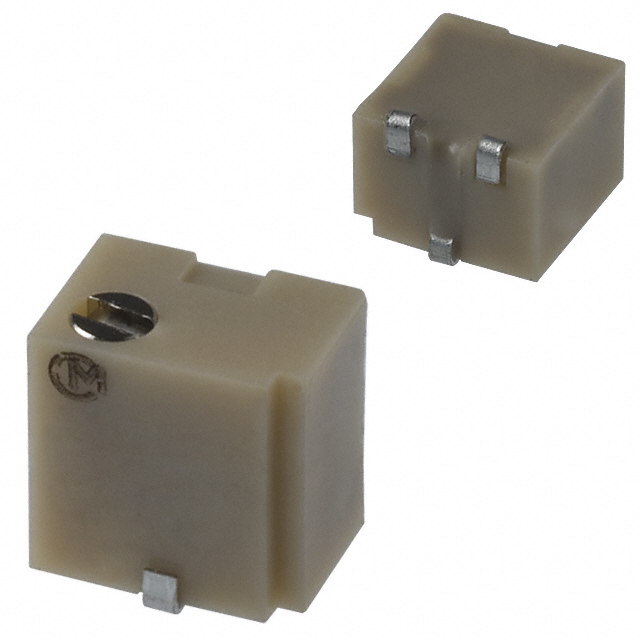

Specification	PVG5A104A01R00

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	11 turns
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	100 kOhm
Resistive Material	Cermet
Size / Dimension Length	0.189 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.138 in
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	10 %

PVG5A Series

Part	Resistance	Mounting Type	Temperature Coefficient	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Resistive Material	Tolerance	Number of Turns	Termination Style	Adjustment Type	Power (Watts)	Power (Watts) Options
Bourns Inc. PVG5A101A01R00	100 Ohms	Surface Mount	200 ppm/°C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A101C03B00	100 Ohms	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A503C03R00	50 kOhm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A103C03B00	10 kOhm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A203C03R00	20 kOhm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A104C03R00	100 kOhm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	12 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A200C03B00	20 Ohm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A104A01R00	100 kOhm	Surface Mount	100 ppm/°C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A503A01R00	50 kOhm	Surface Mount	100 ppm/°C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W
Bourns Inc. PVG5A502C03R00	5 kOhm	Surface Mount	150 ppm/¯C	0.138 in	Rectangular	0.189 in	Cermet	10 %	11 turns	J Lead	Top Adjustment	250 mW	1/4W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PVG5A104A01R00 | Datasheet
