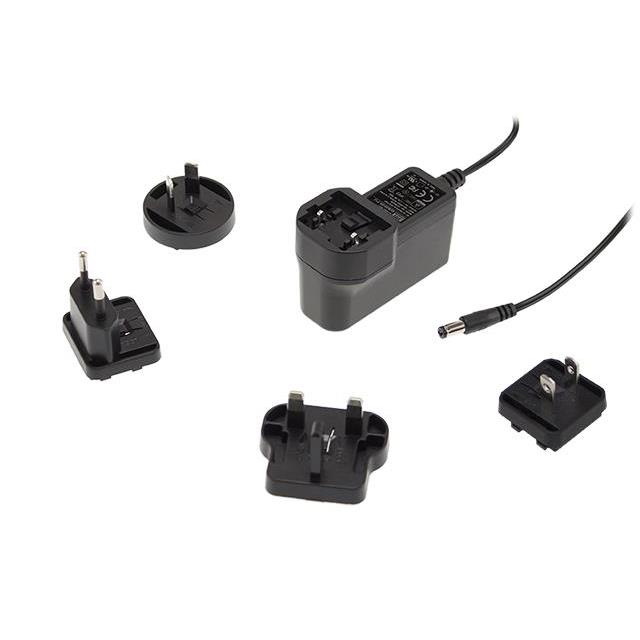

Specification	GEM06I07-P1J

Applications	Medical
Approval Agency	TUV, CE, cURus, FCC, EAC
Cord Length	47.2 in
Current - Output (Max)	800 mA
Efficiency	Level V
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Sold Separately)
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption (Max)	300 mW
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension Height	1.91 in
Size / Dimension Length	2.91 in
Size / Dimension Width	1.54 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Output	7.5 V

GEM06I07 Series

Part	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Polarization	Cord Length	Efficiency	Input Type	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Form	Applications	No Load Power Consumption (Max)	Region Utilized	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output (Max)	Approval Agency	Input Connector	Voltage - Output	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
MEAN WELL USA Inc. GEM06I07-P1J	6 W	70 °C	-20 °C	Positive Center	47.2 in	Level V	Multi-Blade (Sold Separately)	2.1 mm	Barrel Plug	11 mm	5.5 mm	Wall Mount (Class II)	Medical	300 mW	International	80 V	264 V	800 mA	CE cURus EAC FCC TUV	Multi-Blade (Sold Separately)	7.5 V	1.54 in	1.91 in	2.91 in
