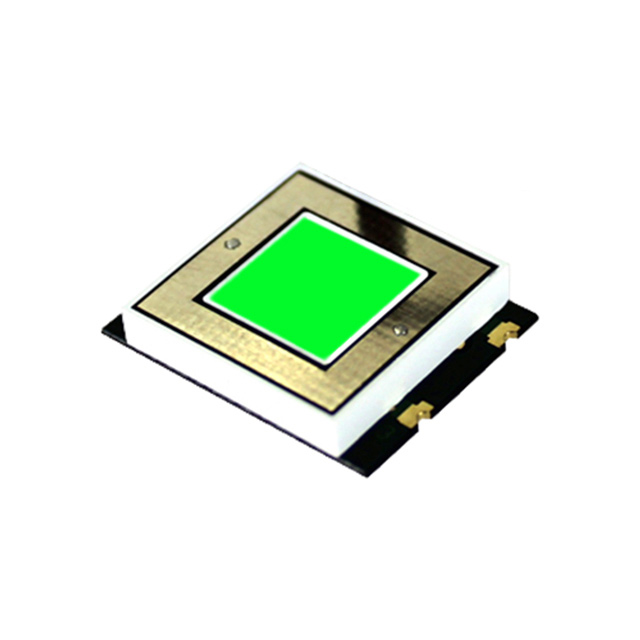

Specification	CSMS15CIC05

Actuator Marking	No Marking
Actuator Type	Square, Button
Color	Green
Color - Actuator/Cap	Clear
Illumination Type	LED
Illumination Voltage (Nominal)	3.2 VDC
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Type	Illuminated, Capacitive

CSMS15 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Actuator Marking	Illumination Voltage (Nominal)	Actuator Type	Mounting Type	Color - Actuator/Cap	Type	Switch Function	Color	Illumination Type
Visual Communications Company - VCC CSMS15CIC07	85 °C	-35 °C	SMD (SMT) Tab	No Marking	2 VDC	Button Square	Surface Mount	Clear	Capacitive Illuminated	Off-Mom	Yellow	LED
Visual Communications Company - VCC CSMS15CIC05	105 °C	-40 °C	SMD (SMT) Tab	No Marking	3.2 VDC	Button Square	Surface Mount	Clear	Capacitive Illuminated	Off-Mom	Green	LED
Visual Communications Company - VCC CSMS15CIC01	85 °C	-35 °C	SMD (SMT) Tab	No Marking	2.8 VDC	Button Square	Surface Mount	Clear	Capacitive Illuminated	Off-Mom	Red	LED
