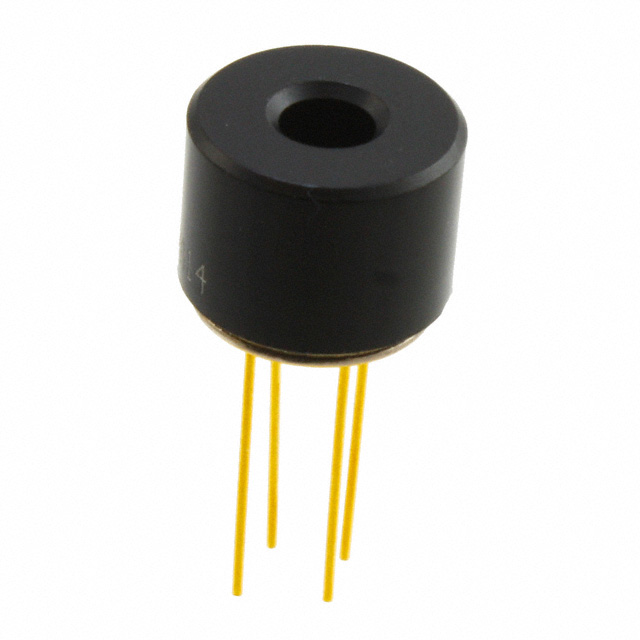

MLX90614ESF-ACC-000-TU

Active

Melexis Technologies NV

SENSOR DGTL -40C-85C TO39

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MLX90614ESF-ACC-000-TU

Active

Melexis Technologies NV

SENSOR DGTL -40C-85C TO39

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90614ESF-ACC-000-TU

Accuracy - Highest (Lowest)	0.5 °C, 4 °C
Features	Sleep Mode
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	PWM, SMBus
Package / Case	TO-39-4 Metal Can
Resolution	16 b
Sensing Temperature - Local [Max]	85 °C
Sensing Temperature - Local [Min]	-40 °C
Sensing Temperature - Remote [Max]	380 °C
Sensing Temperature - Remote [Min]	-70 °C
Sensor Type	Infrared (IR), Digital
Supplier Device Package	TO-39
Test Condition [Max]	380 °C
Test Condition [Max]	60 °C
Test Condition [Min]	240 °C
Test Condition [Min]	0 °C
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

MLX90614 Series

Part	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Output Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Temperature - Remote [Min]	Sensing Temperature - Remote [Max]	Sensor Type	Supplier Device Package	Resolution	Features	Accuracy - Highest (Lowest)	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]
Melexis Technologies NV MLX90614ESF-BCA-000-SP	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-ACF-000-SP	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	5.5 V	4.5 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	240 °C	60 °C
Melexis Technologies NV MLX90614ESF-DCI-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.2 °C 0.3 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-BCA-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-ABA-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	5.5 V	4.5 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	240 °C	60 °C
Melexis Technologies NV MLX90614ESF-ACC-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	5.5 V	4.5 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	240 °C	60 °C
Melexis Technologies NV MLX90614ESF-BCC-000-SP	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-BAA-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-BCH-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	3.6 V	2.6 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	120 °C	60 °C
Melexis Technologies NV MLX90614ESF-ACF-000-TU	-40 °C	85 °C	PWM SMBus	TO-39-4 Metal Can	5.5 V	4.5 V	Through Hole	85 °C	-40 °C	-70 °C	380 °C	Digital Infrared (IR)	TO-39	16 b	Sleep Mode	0.5 °C 4 °C	380 °C	240 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.03
		10	$ 23.09
		47	$ 22.05
		141	$ 19.72
		282	$ 18.81
		517	$ 17.90

Description

General part information

MLX90614 Series

Temperature Sensor Digital, Infrared (IR) -40°C ~ 85°C 16 b TO-39
