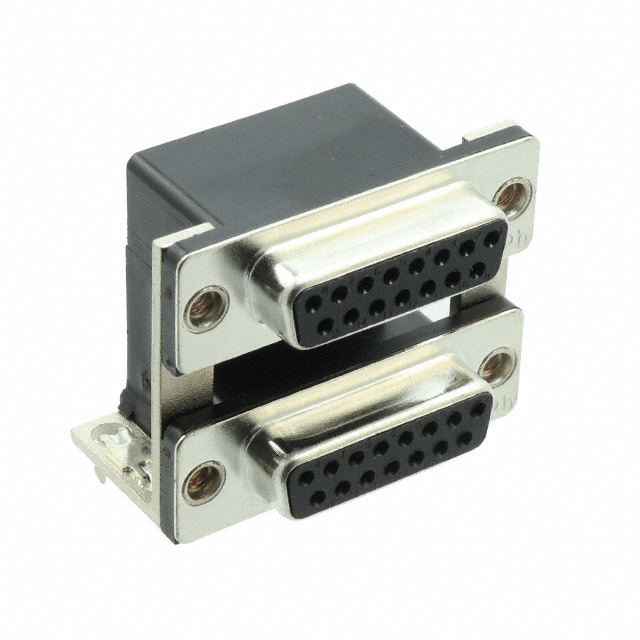

L17H2442120
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L17H2442120
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L17H2442120 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Shielded, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | 2 |
| Shell Size, Connector Layout [custom] | 2 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L17H24 Series
| Part | Flange Feature | Contact Type | Contact Finish | Current Rating (Amps) | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Contact Material | Features | Voltage Rating | Contact Finish Thickness | Termination | Backset Spacing | Backset Spacing | Number of Rows | Material Flammability Rating | Contact Form | Color | Connector Type | Dielectric Material | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Housing/Shell (4-40) | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Brass | Shielded | 250 VDC | Flash | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Black | Plug Male Pins Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 105 ░C | -55 °C | ||
Amphenol ICC (Commercial Products) | Female Screwlock (4-40) Mating Side | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Brass | Board Lock Shielded | 250 VDC | Flash | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Black | Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 105 ░C | -55 °C | ||
Amphenol ICC (Commercial Products) | Housing/Shell (4-40) | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Brass | Board Lock Shielded | 250 VDC | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Black | Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 105 ░C | -55 °C | 15 µin | 0.38 µm | |
Amphenol ICC (Commercial Products) | Female Screwlock (4-40) Mating Side | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Phosphor Bronze | Board Lock Shielded | 250 VDC | Flash | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 125 °C | -55 °C | |||
Amphenol ICC (Commercial Products) | Housing/Shell (4-40) | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Brass | Board Lock Shielded | 250 VDC | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Black | Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 105 ░C | -55 °C | 30 Áin | 0.76 Ám | |
Amphenol ICC (Commercial Products) | 4-40 Board Side | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Brass Phosphor Bronze | Board Lock Shielded | 250 VDC | Flash | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 125 °C | -55 °C | |||
Amphenol ICC (Commercial Products) | 4-40 Board Side | Signal | Gold | 3 A | 15 | 2 | 2 | Through Hole Right Angle | Phosphor Bronze | Board Lock Shielded | 250 VDC | Flash | Solder | 8.08 mm | 0.318 " | 2 | UL94 V-0 | Stamped | Receptacle Female Sockets | Thermoplastic Glass Filled | D-Sub - Stacked | 125 °C | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.07 | |
| 10 | $ 7.73 | |||
| 25 | $ 6.98 | |||
| 40 | $ 6.63 | |||
| 80 | $ 6.15 | |||
| 230 | $ 5.52 | |||
| 440 | $ 5.17 | |||
| 945 | $ 4.80 | |||
Description
General part information
L17H24 Series
15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
