1394048-1

Active

TE Connectivity AMP Connectors

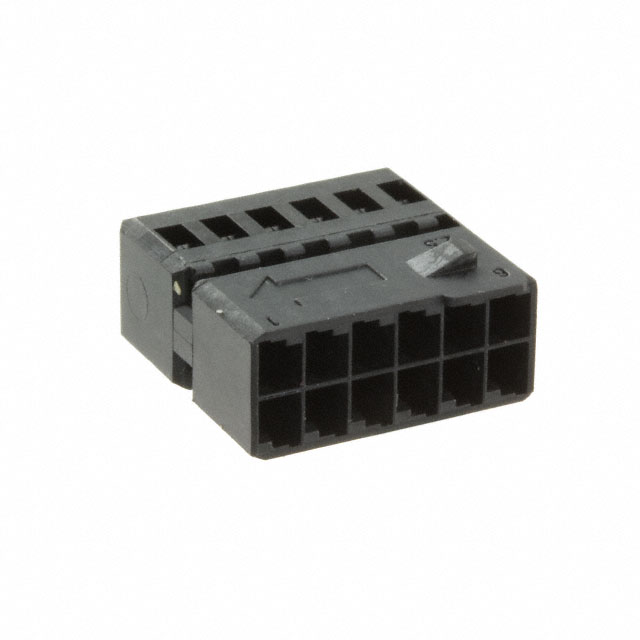

CONN RCPT HSG 12POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1394048-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 12POS 2.54MM

Part	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing [x]	Row Spacing	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Note	Connector Type	Number of Rows	Contact Termination
TE Connectivity AMP Connectors 1394048-1	Black	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	120 °C	0.1 in	2.54 mm	12	Free Hanging (In-Line)	2.54 mm	0.1 in	Female Socket	Contacts Not Included	Receptacle	2	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
