T6F1.00SV

Active

Techflex

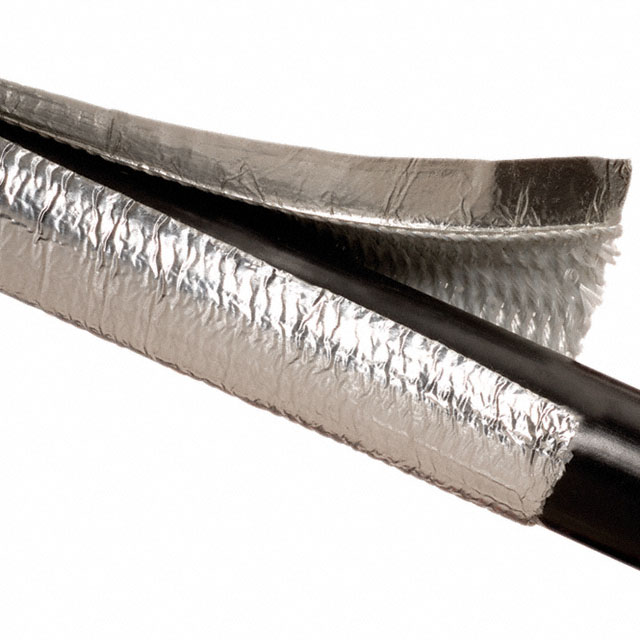

SELF WRAP 1" X 4' SILVER

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1" X 4' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	T6F1.00SV

Abrasion Protection	Abrasion and Cut Resistant
Color	Silver
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Features	Clean Cut, Adhesive Closure Strip, Chemical Resistant
Heat Protection	Heat Resistant
Length [x]	1.22 m
Length [x]	4 ft
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.042 in
Wall Thickness	1.07 mm

SELF WRAP 1" X 4' SILVER

Part	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Wall Thickness	Wall Thickness	Type	Shelf Life Start	Abrasion Protection	Color	Length [x]	Length [x]	Shelf Life	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Material Flammability Rating	Heat Protection	Liquid Protection	Features
Techflex T6F1.00SV	1 in	25.4 mm	0.042 in	1.07 mm	Self Wrap	Date of Manufacture	Abrasion and Cut Resistant	Silver	1.22 m	4 ft	24 Months	Aluminized, Fiberglass, Halogen Free	-60 °C	255 °C	Split Flexible Tube	Non Flammable	Heat Resistant	Gasoline Resistant	Adhesive Closure Strip, Chemical Resistant, Clean Cut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 4.00' (1.22m) Silver

Technical documentation and resources
