333-006-542-607
ActiveEDAC Inc.

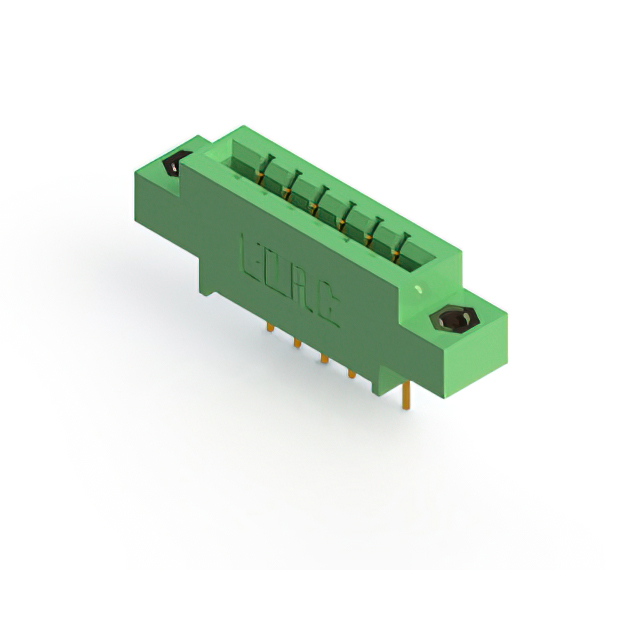

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-006-542-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-006-542-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
333-006 Series
...
| Part | Contact Type | Pitch [x] | Pitch [x] | Material - Insulation | Color | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Termination Rows | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Card Type | Gender | Number of Positions | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám | Single | Solder Eyelet(s) | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Solder | 1 | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Solder | 1 | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Wire Wrap | 1 | Floating Bobbin Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Wire Wrap | 1 | Floating Bobbin Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | |||
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Solder | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Wire Wrap | 1 | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Wire Wrap | 1 | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Cantilever | 0.156 in | 3.96 mm | Polyester Thermoplastic | Green | 10 Áin | 0.25 Ám | Single | Solder | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Gold | Non Specified - Single Edge | Female | 6 | Copper Alloy | -40 °C | 105 ░C | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
